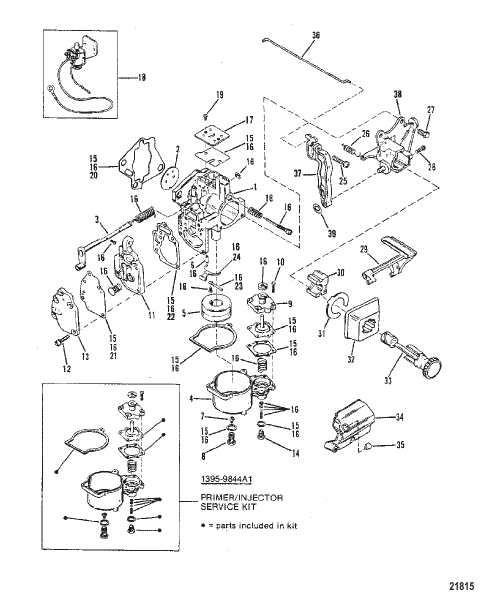

Carburetor (20)
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 9844A1 |
КОМПЛЕКТ ДЛЯ ОБСЛУЖИВАНИЯ Заливочный насос / форсунка PARTS INCLUDED IN KIT ARE INDICATED BY A DOT ON THE ILLUSTRATION. SERVICE KIT Primer/Injector PARTS INCLUDED IN KIT ARE INDICATED BY A DOT ON THE ILLUSTRATION. |
1 | |
| - | 41499A87 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| - | 822261A92 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [0D116956] THRU [0D117955] POWERHEAD ASSEMBLY [0D116956] THRU [0D117955] |
1 | superseded |
| - | 90885A88 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | superseded |
| 1 | 8888A9 |
КАРБЮРАТОР (MANUAL) - WMC-29 CARBURETOR (MANUAL) - WMC-29 |
1 | superseded |
| 1 | 8888A10 |
КАРБЮРАТОР (MANUAL) - WMC-36 CARBURETOR (MANUAL) - WMC-36 |
1 | superseded |
| 1 | 8676A11 |
КАРБЮРАТОР (ELECTRIC) - WMC-30 CARBURETOR (ELECTRIC) - WMC-30 |
1 | superseded |
| 1 | 8676A12 |
КАРБЮРАТОР (ELECTRIC) - WMC-37 CARBURETOR (ELECTRIC) - WMC-37 |
1 | superseded |
| 10 | 9697 |
ВИНТ DIAPHRAGM COVER SCREW DIAPHRAGM COVER |
4 | discontinued |
| 11 | 15827A1 |
КОРПУС FUEL PUMP BODY FUEL PUMP |
1 | discontinued |
| 12 | 9643 |
ВИНТ FUEL PUMP COVER SCREW FUEL PUMP COVER |
5 | |
| 13 | 9637 |
КРЫШКА FUEL PUMP COVER FUEL PUMP |
1 | |
| 14 | 9762 |
ПРОБКА PLUG |
1 | discontinued |
| 15 | 9803 |
КОМПЛЕКТ ПРОКЛАДОК/ДИАФРАГМ GASKET/DIAPHRAGM KIT |
1 | superseded |
| 16 | 9802 |
РЕМОНТНЫЙ КОМПЛЕКТ (WMC 29/30) REPAIR KIT (WMC 29/30) |
1 | superseded |
| 16 | 823649 |
РЕМОНТНЫЙ КОМПЛЕКТ (WMC 36/37) REPAIR KIT (WMC 36/37) |
1 | superseded |
| 17 | 9699 |
ПЛАСТИНА COVER (MANUAL) PLATE COVER (MANUAL) |
1 | discontinued |
| 18 | 823433 |
ОБОГАТИТЕЛЬ Электрический пуск (ELECTRIC) CHOKE Electric (ELECTRIC) |
1 | discontinued |
| 19 | 9696 |
ВИНТ COVER PLATE SCREW COVER PLATE |
2 | discontinued |
| 2 | 9640 |
КЛАПАН Дроссельная заслонка VALVE Throttle |
1 | discontinued |
| 20 | 414491 |
ПРОКЛАДКА CARBURETOR GASKET CARBURETOR |
1 | superseded |
| 21 | 9635 |
ДИАФРАГМА / ПРОКЛАДКА DIAPHRAGM/GASKET |
1 | |
| 22 | 9633 |
ПРОКЛАДКА GASKET |
1 | |
| 23 | F10064 |
ВАЛ SHAFT |
1 | |
| 24 | 824401 |
РЫЧАГ Поплавок LEVER Float |
1 | |
| 25 | 79964 |
ВИНТ (№6-32 x 0.750) FAST IDLE LEVER SCREW (#6-32 x .750) FAST IDLE LEVER |
1 | superseded |
| 26 | 11277 |
ПРУЖИНА Натяжение SPRING Tension |
1 | |
| 27 | 40056110 |
ВИНТ (M5 x 30) PRIMER BRACKET SCREW (M5 x 30) PRIMER BRACKET |
2 | |
| 27 | 400018 |
ВИНТ (M5 x 12) PRIMER BRACKET (M5 X 8 X 12 MM) SCREW (M5 x 12) PRIMER BRACKET (M5 X 8 X 12 MM) |
2 | |
| 28 | 79965 |
ВИНТ (№8-32 x 0.500), нержавеющая сталь PRIMER BRACKET SCREW (#8-32 x .500) Stainless Steel PRIMER BRACKET |
1 | |
| 29 | 112731 |
РЫЧАГ Устройство для заливки топлива LEVER Primer |
1 | |
| 3 | 9695 |
ВАЛ Дроссельная заслонка SHAFT Throttle |
1 | discontinued |
| 30 | 11280 |
БЛОК КУЛАЧКА CAM BLOCK |
1 | |
| 31 | 11278 |
ЗАЖИМ Стопор CLIP Retaining |
1 | |
| 32 | 172291 |
ОБОДОК Обогатитель BEZEL Choke |
1 | |
| 33 | 12802 |
РУЧКА PRIMER KNOB PRIMER |
1 | superseded |
| 34 | 17442 |
КРЫШКА CARBURETOR COVER CARBURETOR |
1 | discontinued |
| 35 | 47579 |
ПРОБКА CARBURETOR COVER PLUG CARBURETOR COVER |
1 | |
| 36 | 127331 |
ПРОВОД ХОЛОСТОГО ХОДА IDLE WIRE |
1 | superseded |
| 37 | 128053 |
РЫЧАГ Быстрые обороты холостого хода FAST IDLE LEVER Fast Idle FAST IDLE |
1 | |
| 38 | 12803 |
КРОНШТЕЙН Устройство для заливки топлива PRIMER BRACKET Primer PRIMER |
1 | |
| 39 | 97877 |
ГАЙКА ТОЛКАТЕЛЯ FAST IDLE LEVER PUSH NUT FAST IDLE LEVER |
1 | superseded |
| 4 | 9164 |
КАМЕРА Топливо BOWL Fuel |
1 | |
| 5 | 9169 |
ПОПЛАВОК FLOAT |
1 | superseded |
| 6 | 9855 |
КЛАПАН INLET NEEDLE VALVE INLET NEEDLE |
1 | superseded |
| 7 | 5317 |
ВОДОМЕТНЫЙ (0.046) MAIN FUEL (WMC 29/30) JET (.046) MAIN FUEL (WMC 29/30) |
1 | |
| 7 | 7394 |
ВОДОМЕТНЫЙ (0.044) MAIN FUEL (WMC 36/37) JET (.044) MAIN FUEL (WMC 36/37) |
1 | |
| 8 | 9171 |
ПРОБКА JET RETAINER PLUG JET RETAINER |
1 | |
| 9 | 813618 |
КРЫШКА DIAPHRAGM (WMC 29/30) COVER DIAPHRAGM (WMC 29/30) |
1 | discontinued |
