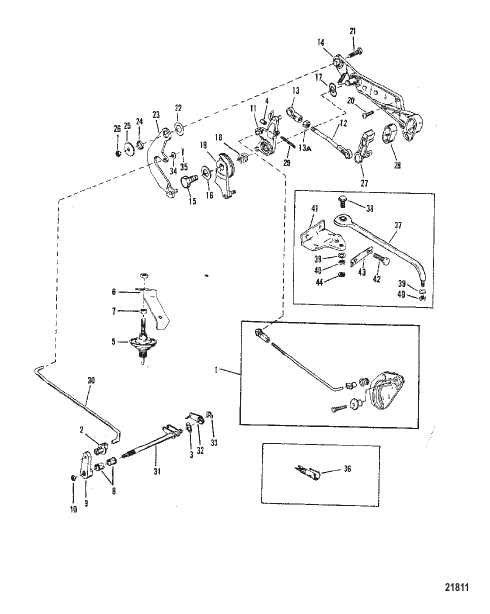

Throttle and Shift Linkage (Electric/Manual Remote Control)
Parts (46)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 17764A2 |
КОМПЛЕКТ СОЕДИНЕНИЯ Дроссельная заслонка LINK KIT Throttle |
1 | discontinued |
| 10 | 400633 |
ГАЙКА (M5) SHIFT SHAFT NUT (M5) SHIFT SHAFT |
1 | superseded |
| 11 | 43360 |
РЫЧАГ CONTROL LEVER CONTROL |
1 | superseded |
| 12 | 817429 |
РАСПРЕДЕЛИТЕЛЬНОЕ ЗВЕНО TIMING LINK |
1 | discontinued |
| 13 | 817428 |
ГНЕЗДО SOCKET |
2 | |
| 13A | 45076 |
ГАЙКА (№10-32), латунь NUT (#10-32) Brass |
1 | |
| 14 | 42026A2 |
ПЛАТФОРМА CONTROL PLATFORM CONTROL |
1 | |
| 15 | 16955 |
ВИНТ (M6 x 8) PLATFORM SCREW (M6 x 8) PLATFORM |
1 | |
| 16 | 4002316 |
ШАЙБА (6.60 X 17.0 X 1.5, нерж. сталь) PLATFORM SCREW WASHER (6.60 X 17.0 X 1.5SS) PLATFORM SCREW |
1 | superseded |
| 17 | 69708 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 18 | 89540 |
ПРУЖИНА SPARK ADVANCE SPRING SPARK ADVANCE |
1 | |
| 19 | 42343 |
РЫЧАГ ACTUATING LEVER ACTUATING |
1 | discontinued |
| 2 | 932481 |
ВТУЛКА BUSHING |
1 | superseded |
| 20 | 4000328 |
ВИНТ (M6 x 16) CONTROL PLATFORM SCREW (M6 x 16) CONTROL PLATFORM |
1 | superseded |
| 20 | 4000329 |
ВИНТ (M6 x 20) CONTROL PLATFORM SCREW (M6 x 20) CONTROL PLATFORM |
2 | superseded |
| 21 | 40007128 |
ВИНТ (M6 x 20) SHIFT LEVER TO PLATFORM SCREW (M6 x 20) SHIFT LEVER TO PLATFORM |
1 | discontinued |
| 22 | 95093 |
ШАЙБА SHIFT LEVER TO PLATFORM WASHER SHIFT LEVER TO PLATFORM |
1 | discontinued |
| 23 | 43424 |
РЫЧАГ SHIFT LEVER SHIFT |
1 | discontinued |
| 24 | 95091 |
РУКАВ SHIFT LEVER TO PLATFORM SLEEVE SHIFT LEVER TO PLATFORM |
1 | discontinued |
| 25 | 35280 |
ШАЙБА (0.255 x 0.620 x 0.030), нержавеющая сталь SHIFT LEVER SCREW WASHER (.255 x .620 x .030) Stainless Steel SHIFT LEVER SCREW |
1 | |
| 26 | 401196 |
ГАЙКА (M6) SHIFT LEVER SCREW NUT (M6) SHIFT LEVER SCREW |
1 | |
| 27 | 42846A2 |
КРЫШКА В СБОРЕ COVER ASSEMBLY |
1 | |
| 28 | 39519 |
КОЛПАЧОК RETAINER CUP RETAINER |
1 | |
| 29 | 118591 |
ВИНТ (0.190-32 x 1.750) IDLE STOP - CONTROL LEVER SCREW (.190-32 x 1.750) IDLE STOP - CONTROL LEVER |
1 | discontinued |
| 3 | 34632 |
ШАЙБА WASHER |
1 | discontinued |
| 30 | 434441 |
ТЯГА ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHIFT LINK |
1 | superseded |
| 31 | 95027A6 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ HORIZONTAL SHIFT SHAFT HORIZONTAL |
1 | discontinued |
| 32 | 42156 |
РЫЧАГ SHIFT SHAFT LEVER SHIFT SHAFT |
1 | |
| 33 | 95019 |
КОЛЬЦО Стопор (OLD DESIGN) RING Retaining (OLD DESIGN) |
1 | |
| 34 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) SHIFT LINK WASHER (.203 x .406 x .040) SHIFT LINK |
1 | |
| 35 | 21071 |
ШПЛИНТ SHIFT LINK COTTER PIN SHIFT LINK |
1 | superseded |
| 36 | 424291 |
ФИКСАТОР CABLE RETAINER CABLE |
2 | |
| 37 | 96487A2 |
СТЕРЖЕНЬ ТЯГИ В СБОРЕ STEERING LINK ROD ASSEMBLY STEERING |
1 | superseded |
| 38 | 14000 |
ВИНТ (0.375-24 x 1.25) LINK ROD SCREW (.375-24 x 1.25) LINK ROD |
1 | superseded |
| 39 | 34931 |
ШАЙБА (0.406 x 0.734 x 0.063), нержавеющая сталь SCREW AND LINK ROD WASHER (.406 x .734 x .063) Stainless Steel SCREW AND LINK ROD |
2 | |
| 4 | 48039 |
ПРОБКА IDLE STOP SCREW CAP IDLE STOP SCREW |
1 | |
| 40 | 34863 |
ГАЙКА (.375-24) SCREW AND LINK ROD NUT (.375-24) SCREW AND LINK ROD |
2 | superseded |
| 41 | 96186A2 |
КРОНШТЕЙН В СБОРЕ ATTACHING BRACKET ASSEMBLY ATTACHING |
1 | |
| 42 | 4000376 |
ВИНТ (M10 x 25) BRACKET SCREW (M10 x 25) BRACKET |
2 | superseded |
| 43 | 96201 |
СКОБА Ключ (OLD DESIGN) STRAP Key (OLD DESIGN) |
1 | |
| 44 | 400248 |
СТОПОРНАЯ ШАЙБА (M10) (NEW DESIGN) LOCKWASHER (M10) (NEW DESIGN) |
2 | |
| 5 | 92425 |
АМОРТИЗАТОР (Use where Applicable) DASHPOT (Use where Applicable) |
1 | discontinued |
| 6 | 93001 |
КРОНШТЕЙН (Use where Applicable) BRACKET (Use where Applicable) |
1 | discontinued |
| 7 | 28770 |
ГАЙКА (0.312-24), нержавеющая сталь (Use where Applicable) NUT (.312-24) Stainless Steel (Use where Applicable) |
2 | |
| 8 | 60762 |
ВТУЛКА SHIFT SHAFT BUSHING SHIFT SHAFT |
2 | |
| 9 | 17724 |
РЫЧАГ SHIFT SHAFT LEVER SHIFT SHAFT |
1 | superseded |
