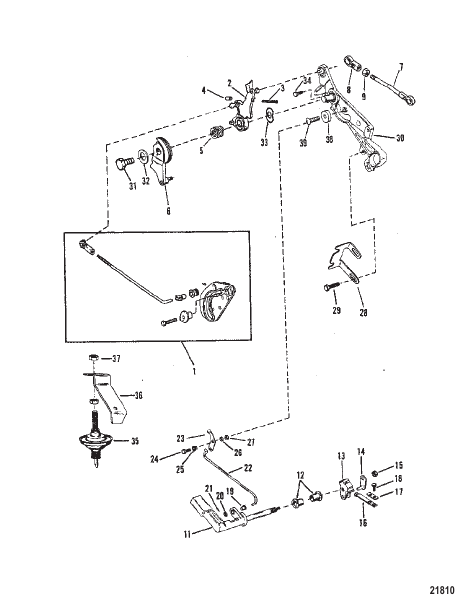

Throttle and Shift Linkage (Side Shift)
Parts (38)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 17764A2 |
КОМПЛЕКТ СОЕДИНЕНИЯ Дроссельная заслонка LINK KIT Throttle |
1 | discontinued |
| 11 | 423301 |
РУКОЯТКА SHIFT HANDLE SHIFT |
1 | discontinued |
| 12 | 60762 |
ВТУЛКА SHIFT HANDLE BUSHING SHIFT HANDLE |
2 | |
| 13 | 423291 |
РЫЧАГ SHIFT LEVER SHIFT |
1 | discontinued |
| 14 | 42358 |
ЗАДНЯЯ ПЛАСТИНА SHIFT LEVER BACKPLATE SHIFT LEVER |
1 | discontinued |
| 15 | 400633 |
ГАЙКА (M5) SHIFT LEVER NUT (M5) SHIFT LEVER |
1 | superseded |
| 16 | 39627 |
ПРУЖИНА DETENT SPRING DETENT |
1 | |
| 17 | 39601 |
ПЛАСТИНА DETENT SPRING (OLD DESIGN) PLATE DETENT SPRING (OLD DESIGN) |
1 | discontinued |
| 18 | 400018 |
ВИНТ (M5 x 12) DETENT SPRING AND PLATE SCREW (M5 x 12) DETENT SPRING AND PLATE |
2 | |
| 19 | 96202 |
ВТУЛКА SHIFT LINK BUSHING SHIFT LINK |
1 | discontinued |
| 2 | 110383 |
РЫЧАГ CONTROL LEVER CONTROL |
1 | discontinued |
| 20 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) SHIFT LINK WASHER (.203 x .406 x .040) SHIFT LINK |
1 | |
| 21 | 21071 |
ШПЛИНТ SHIFT LINK COTTER PIN SHIFT LINK |
1 | superseded |
| 22 | 11042 |
СОЕДИНИТЕЛЬ SHIFT LINK SHIFT |
1 | discontinued |
| 23 | 110501 |
РЫЧАГ THROTTLE LIMIT LEVER THROTTLE LIMIT |
1 | discontinued |
| 24 | 400036 |
ВИНТ (M5 x 20) THROTTLE LIMIT LEVER SCREW (M5 x 20) THROTTLE LIMIT LEVER |
1 | discontinued |
| 25 | 85095 |
ВТУЛКА THROTTLE LIMIT LEVER BUSHING THROTTLE LIMIT LEVER |
1 | superseded |
| 26 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) THROTTLE LIMIT SCREW WASHER (.203 x .406 x .040) THROTTLE LIMIT SCREW |
1 | |
| 27 | 400633 |
ГАЙКА (M5) THROTTLE LIMIT SCREW NUT (M5) THROTTLE LIMIT SCREW |
1 | superseded |
| 28 | 17848 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 29 | 4000330 |
ВИНТ (M6 x 25) CABLE BRACKET SCREW (M6 x 25) CABLE BRACKET |
2 | superseded |
| 3 | 118591 |
ВИНТ (0.190-32 x 1.750) CONTROL LEVER SCREW (.190-32 x 1.750) CONTROL LEVER |
1 | discontinued |
| 30 | 42026A2 |
ПЛАТФОРМА CONTROL PLATFORM CONTROL |
1 | |
| 31 | 16955 |
ВИНТ (M6 x 8) SCREW (M6 x 8) |
1 | |
| 32 | 4002316 |
ШАЙБА (6.60 X 17.0 X 1.5, нерж. сталь) WASHER (6.60 X 17.0 X 1.5SS) |
1 | superseded |
| 33 | 69708 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 34 | 4000328 |
ВИНТ (M6 x 16) PLATFORM TO BLOCK SCREW (M6 x 16) PLATFORM TO BLOCK |
1 | superseded |
| 35 | 92425 |
АМОРТИЗАТОР (OLD DESIGN) DASHPOT (OLD DESIGN) |
1 | discontinued |
| 36 | 93001 |
КРОНШТЕЙН DASHPOT (OLD DESIGN) BRACKET DASHPOT (OLD DESIGN) |
1 | discontinued |
| 37 | 28770 |
ГАЙКА (0.312-24), нержавеющая сталь DASHPOT TERMINAL (OLD DESIGN) NUT (.312-24) Stainless Steel DASHPOT TERMINAL (OLD DESIGN) |
2 | |
| 38 | 821211 |
ПРОСТАВКА (SUPER 15) SPACER (SUPER 15) |
1 | discontinued |
| 39 | 821210 |
ВИНТ (SUPER 15) SCREW (SUPER 15) |
1 | discontinued |
| 4 | 48039 |
ПРОБКА CONTROL LEVER SCREW CAP CONTROL LEVER SCREW |
1 | |
| 5 | 89540 |
ПРУЖИНА SPARK ADVANCE SPRING SPARK ADVANCE |
1 | |
| 6 | 42343 |
РЫЧАГ ACTUATING LEVER ACTUATING |
1 | discontinued |
| 7 | 817429 |
РАСПРЕДЕЛИТЕЛЬНОЕ ЗВЕНО TIMING LINK |
1 | discontinued |
| 8 | 817428 |
ГНЕЗДО SOCKET |
2 | |
| 9 | 45076 |
ГАЙКА (№10-32), латунь NUT (#10-32) Brass |
1 |
