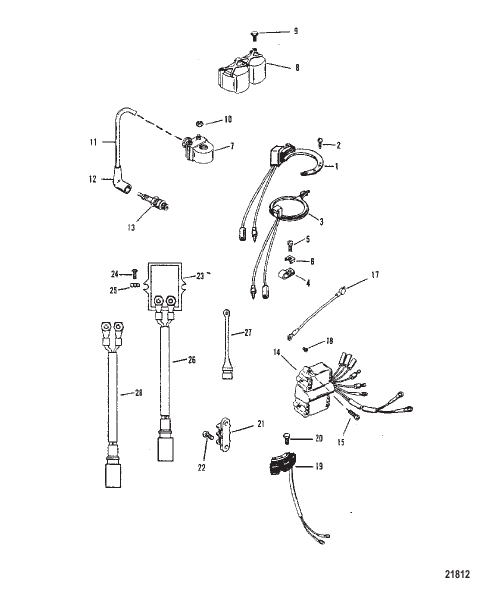

Ignition/Electrical Components
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 86617A13 |
СТАТОР В СБОРЕ STATOR ASSEMBLY |
1 | superseded |
| 10 | 45076 |
ГАЙКА (№10-32), латунь COIL TERMINAL NUT (#10-32) Brass COIL TERMINAL |
4 | |
| 11 | 813715A3 |
ВЫВОДЫ ВЫСОКОГО НАПРЯЖЕНИЯ HIGH TENSION LEADS |
1 | superseded |
| 11 | 813715A2 |
КОМПЛЕКТ КАБЕЛЕЙ Высокого напряжения (5" и 8.25") (COMMERCIAL ENGINES) CABLE SET High Tension (5 and 8.25 Inch) (COMMERCIAL ENGINES) |
1 | |
| 12 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ SPARK PLUG BOOT/TERMINAL KIT SPARK PLUG |
2 | |
| 13 | 97180 |
СВЕЧА ЗАЖИГАНИЯ (NGK #BUZHW) (See Service Bulletin 91-36) SPARK PLUG (NGK #BUZHW) (See Service Bulletin 91-36) |
2 | superseded |
| 13 | 14103570 |
СВЕЧА ЗАЖИГАНИЯ (NGK #BUZHW-2) (See Service Bulletin 91-36) SPARK PLUG (NGK #BUZHW-2) (See Service Bulletin 91-36) |
2 | superseded |
| 13 | 136862 |
СВЕЧА ЗАЖИГАНИЯ (NGK #BU8H) (See Service Bulletin 91-36) SPARK PLUG (NGK #BU8H) (See Service Bulletin 91-36) |
2 | superseded |
| 13 | 8167372 |
СВЕЧА ЗАЖИГАНИЯ (NGK #BP8H-N-10) (See Service Bulletin 91-36) SPARK PLUG (NGK #BP8H-N-10) (See Service Bulletin 91-36) |
2 | superseded |
| 13 | 8168372 |
СВЕЧА ЗАЖИГАНИЯ (NGK #BPZ8H-N-10) (See Service Bulletin 91-36) SPARK PLUG (NGK #BPZ8H-N-10) (See Service Bulletin 91-36) |
2 | superseded |
| 14 | 7452A15 |
РАСПРЕДЕЛИТЕЛЬНАЯ КОРОБКА В СБОРЕ SWITCHBOX ASSEMBLY |
1 | superseded |
| 15 | 40019108 |
ВИНТ (M5 x 20) SWITCH BOX TO CYLINDER BLOCK SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK |
3 | discontinued |
| 17 | 88807A10 |
КАБЕЛЬ В СБОРЕ AUXILIARY CABLE ASSEMBLY AUXILIARY |
2 | discontinued |
| 18 | 48408 |
ВИНТ (№10-16 x 0.500) GROUND WIRE SCREW (#10-16 x .500) GROUND WIRE |
1 | |
| 19 | 86704A2 |
СТАТОР В СБОРЕ AUXILIARY STATOR ASSEMBLY AUXILIARY |
1 | superseded |
| 2 | 4000120 |
ВИНТ (M5 x 25) SCREW (M5 x 25) |
2 | discontinued |
| 2 | 400015 |
ВИНТ (M5 x 10) STATOR ATTACHING SCREW (M5 x 10) STATOR ATTACHING |
2 | discontinued |
| 20 | 4000123 |
ВИНТ (M5 x 30) STATOR ATTACHING SCREW (M5 x 30) STATOR ATTACHING |
3 | |
| 21 | 63813 |
КЛЕММНАЯ КОЛОДКА TERMINAL BLOCK |
1 | superseded |
| 22 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь TERMINAL BLOCK SCREW (#10-16 x .625) Stainless Steel TERMINAL BLOCK |
2 | |
| 23 | 95845 |
РЕГУЛЯТОР Напряжение REGULATOR Voltage |
1 | superseded |
| 24 | 92799 |
ВИНТ (№10-16 x 1.12) SCREW (#10-16 x 1.12) |
2 | |
| 25 | 45076 |
ГАЙКА (№10-32), латунь NUT (#10-32) Brass |
2 | |
| 26 | 74725A2 |
ЖГУТ ПРОВОДОВ В СБОРЕ (BLACK/RED) HARNESS ASSEMBLY (BLACK/RED) |
1 | |
| 27 | 71663 |
ПРОБКА PLUG |
1 | |
| 28 | 65017A2 |
ЖГУТ ПРОВОДОВ В СБОРЕ (EXTERNAL) HARNESS ASSEMBLY (EXTERNAL) |
1 | |
| 3 | 98450A5 |
ТРИГГЕР В СБОРЕ TRIGGER ASSEMBLY |
1 | superseded |
| 4 | 24836 |
ЗАЖИМ TRIGGER LEADS (Manual) CLIP TRIGGER LEADS (Manual) |
1 | |
| 4 | 22740 |
ЗАЖИМ TRIGGER LEADS (Electric/Manual Alternator) CLIP TRIGGER LEADS (Electric/Manual Alternator) |
1 | |
| 5 | 48408 |
ВИНТ (№10-16 x 0.500) CLIP TO CRANKCASE SCREW (#10-16 x .500) CLIP TO CRANKCASE |
1 | |
| 6 | 69205 |
C-ШАЙБА CLIP SCREW C WASHER CLIP SCREW |
1 | superseded |
| 7 | 7370A13 |
КАТУШКА В СБОРЕ Зажигание COIL ASSEMBLY Ignition |
2 | superseded |
| 8 | 99762 |
КРЫШКА IGNITION COIL COVER IGNITION COIL |
1 | superseded |
| 9 | 4010555 |
ВИНТ (M5 x 55), нержавеющая сталь IGNITION COIL COVER SCREW (M5 x 55) Stainless Steel IGNITION COIL COVER |
3 | superseded |
