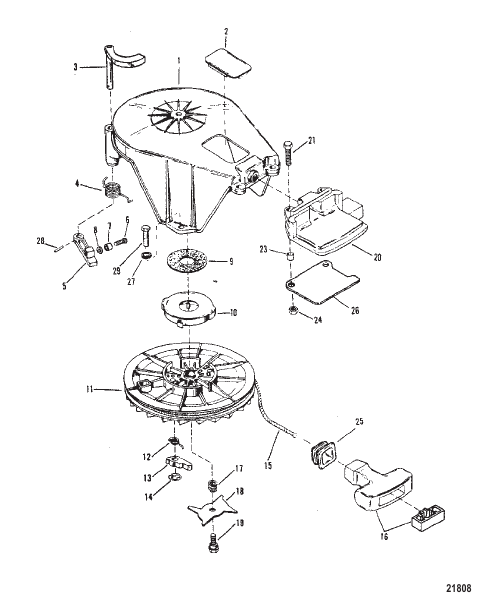

Recoil Starter Assembly (MANUAL)
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 42712A1 |
КОРПУС В СБОРЕ Стартер STARTER HOUSING ASSEMBLY Starter STARTER |
1 | superseded |
| 10 | 86857 |
ПРУЖИНА STARTER SPRING STARTER |
1 | superseded |
| 11 | 42566 |
РОЛИК STARTER SHEAVE STARTER |
1 | superseded |
| 12 | 86851 |
ПРУЖИНА CAM SPRING CAM |
2 | superseded |
| 13 | 86850 |
КУЛАЧОК CAM |
2 | superseded |
| 14 | 86849 |
КОЛЬЦО Стопор CAM RING Retaining CAM |
2 | superseded |
| 15 | 12066A9 |
ТРОС STARTER ROPE STARTER |
1 | superseded |
| 16 | 85174A1 |
РУКОЯТКА В СБОРЕ STARTER ROPE HANDLE ASSEMBLY STARTER ROPE |
1 | |
| 17 | 86852 |
ПРУЖИНА CAM SPRING CAM |
1 | superseded |
| 18 | 86853 |
КУЛАЧОК CAM |
1 | superseded |
| 19 | 97516 |
ВИНТ CAM TO STARTER SHEAVE SCREW CAM TO STARTER SHEAVE |
1 | superseded |
| 2 | 86971 |
КРЫШКА STARTER HOUSING (EARLY MODELS) COVER STARTER HOUSING (EARLY MODELS) |
1 | discontinued |
| 20 | 426264 |
ОПОРА STARTER HANDLE SUPPORT STARTER HANDLE |
1 | |
| 21 | 40019111 |
ВИНТ (M5 x 35) SUPPORT TO STARTER HOUSING SCREW (M5 x 35) SUPPORT TO STARTER HOUSING |
2 | |
| 23 | 309772 |
ПРОСТАВКА SUPPORT SCREW SPACER SUPPORT SCREW |
4 | |
| 24 | 400633 |
ГАЙКА (M5) SUPPORT SCREW NUT (M5) SUPPORT SCREW |
2 | superseded |
| 25 | 44180 |
ВТУЛКА Трос BUSHING Rope |
1 | |
| 26 | 17212 |
ОПОРА SUPPORT |
1 | superseded |
| 27 | 23538 |
ШАЙБА WASHER |
1 | discontinued |
| 28 | 38489 |
ШТИФТ Ролик LOCK LEVER PIN Roll LOCK LEVER |
1 | |
| 29 | 40011128 |
ВИНТ (M6 x 20), нержавеющая сталь STARTER HOUSING ATTACHING SCREW (M6 x 20) Stainless Steel STARTER HOUSING ATTACHING |
2 | superseded |
| 29 | 40011131 |
ВИНТ (M6 x 35), нержавеющая сталь STARTER HOUSING ATTACHING SCREW (M6 x 35) Stainless Steel STARTER HOUSING ATTACHING |
1 | |
| 3 | 94019 |
РЫЧАГ LOCK (UPPER) LEVER LOCK (UPPER) |
1 | superseded |
| 4 | 12734 |
ПРУЖИНА UPPER LOCK LEVER SPRING UPPER LOCK LEVER |
1 | discontinued |
| 5 | 938762 |
РЫЧАГ LOCK (LOWER) LEVER LOCK (LOWER) |
1 | superseded |
| 6 | 92799 |
ВИНТ (№10-16 x 1.12) LOWER LOCK LEVER (20/25) SCREW (#10-16 x 1.12) LOWER LOCK LEVER (20/25) |
1 | |
| 6 | 92051 |
ВИНТ (10-16 x 0.75) (SeaPro/Marathon 25/Super 15) SCREW (10-16 x .75) (SeaPro/Marathon 25/Super 15) |
1 | |
| 7 | 818142 |
ВТУЛКА (SeaPro/Marathon 25/Super 15) BUSHING (SeaPro/Marathon 25/Super 15) |
1 | discontinued |
| 8 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) (SeaPro/Marathon 25/Super 15) WASHER (.203 x .406 x .040) (SeaPro/Marathon 25/Super 15) |
1 | |
| 9 | 90478 |
НАКЛАДКА FELT PAD FELT |
1 | superseded |
