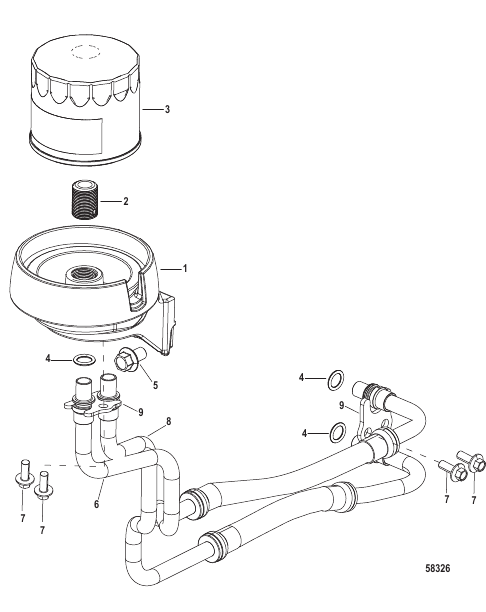

Remote Oil Raw Water Cooling
Parts (9)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0095983 |
КОРПУС Выносной масляный фильтр HOUSING Remote Oil Filter |
1 | |
| 2 | 863485 |
ФИТИНГ FITTING |
1 | |
| 3 | 866340Q03 |
ФИЛЬТР Масло марки Quicksilver FILTER Oil |
1 | |
| 4 | 8M2000565 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
4 | |
| 5 | 8M0083541 |
ВИНТ (M10 x 16) SCREW (M10 x 16) |
2 | |
| 6 | 8M0162100 |
LINE Oil LINE Oil |
1 | |
| 7 | 4010612 |
ВИНТ (M6 x 12), нержавеющая сталь SCREW (M6 x 12) Stainless Steel |
4 | |
| 8 | 8M0162074 |
LINE Oil (Brackets attached on both ends) LINE Oil (Brackets attached on both ends) |
1 | |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Bracket NOT SOLD SEPARATE Bracket |
2 |
