Parts Catalog

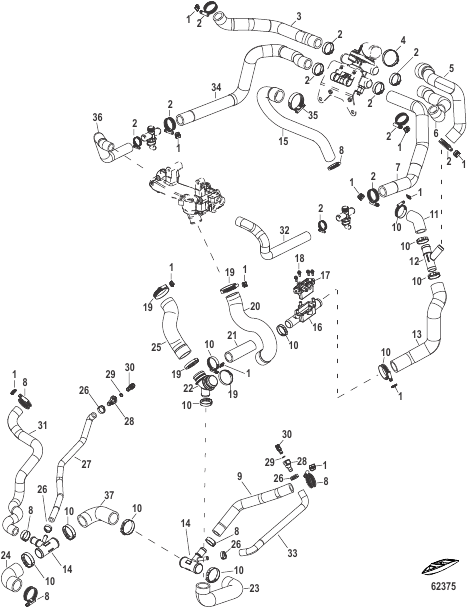

Raw Water Cooling Cooling Hoses

Parts (37)

#	Part Number	Description	Qty	Status
1	8M0074364	ПРОБКА COVER Hose Clamp	AR
10	8M0188622	HOSE CLAMP HOSE CLAMP	10
11	8M0116960	HOSE Steering Cooler to Y Fitting HOSE Steering Cooler to Y Fitting	1
12	8M2003728	Y-ОБРАЗНЫЙ ФИТИНГ Y-FITTING	1
13	8M0111040	РУКАВ Strainer to Drain Fitting HOSE Strainer to Drain Fitting	1
14	8M0088893	ФИТИНГ Drain FITTING Drain	2
15	807661	РУКАВ Transom to Cooler Alpha Only HOSE Transom to Cooler Alpha Only	1
16	8M0095457	СЕТЧАТЫЙ ФИЛЬТР В СБОРЕ STRAINER ASSEMBLY	1
17	8M0097249	  КРЫШКА COVER	1
18	8M0086279	ВИНТ (M6) SCREW (M6)	4
19	815504232	ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter)	4
2	815504216	ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter)	9
20	8M0117029	РУКАВ Y Fitting to Crossover HOSE Y Fitting to Crossover	1
21	8M0087038	РУКАВ Strainer to Distribution Housing HOSE Strainer to Distribution Housing	1
22	8M0107045	ФИТИНГ Y FITTING Y	1
23	8M0098992	РУКАВ Drain Fitting to Y Fitting HOSE Drain Fitting to Y Fitting	1
24	8M0080675	РУКАВ Distribution Housing to Drain Fitting HOSE Distribution Housing to Drain Fitting	1
25	8M0117030	РУКАВ Y Fitting to Circulation Pump HOSE Y Fitting to Circulation Pump	1
26	815504210	ЗАЖИМ Червячная передача CLAMP Worm Gear	4
27	8M0080748	РУКАВ Starboard Drain Fitting HOSE Starboard Drain Fitting	1
28	862225	ФИТИНГ FITTING	2
29	627021	УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070)	2
3	8M0099692	РУКАВ Connects to Upper Poppet Valve HOSE Connects to Upper Poppet Valve	1
30	8M0180470	FITTING FITTING	2
31	8M0090099	РУКАВ Exhaust Manifold to Drain Fitting HOSE Exhaust Manifold to Drain Fitting	1
32	8M0088868	РУКАВ Crossover to Port Manifold HOSE Crossover to Port Manifold	1
33	8M0111037	РУКАВ Port Drain HOSE Port Drain	1
34	8M2023901	РУКАВ Connects to Poppet Valve; Starboard Bottom HOSE Connects to Poppet Valve; Starboard Bottom	1
35	815504220	ЗАЖИМ Червячная передача CLAMP Worm Gear	1
36	8M0118129	РУКАВ Crossover to Manifold HOSE Crossover to Manifold	1
37	8M0098984	РУКАВ Drain Fitting to Drain Fitting HOSE Drain Fitting to Drain Fitting	1
4	815504232	ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter)	1
5	8M2023916	РУКАВ Y Fitting to Poppet Valve Cover HOSE Y Fitting to Poppet Valve Cover	1
6	8M0100541	РУКАВ Connects to Upper Poppet Valve HOSE Connects to Upper Poppet Valve	1
7	8M0078557	РУКАВ Connects to Lower Poppet Valve HOSE Connects to Lower Poppet Valve	1
8	815504212	ЗАЖИМ Червячная передача CLAMP Worm Gear	5
9	8M0111038	РУКАВ Port Drain HOSE Port Drain	1
