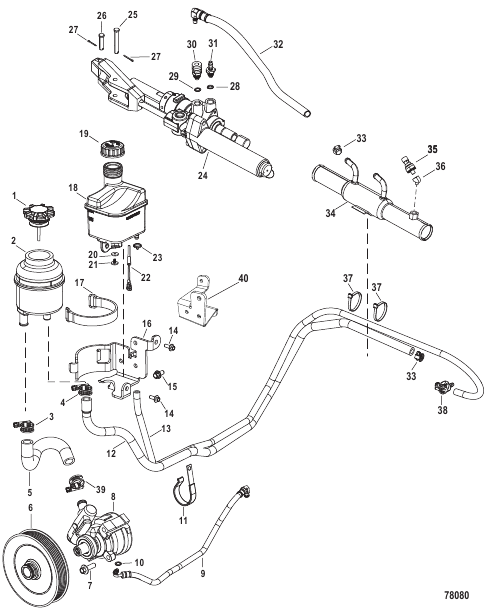

Steering System and Drive Lube Bottle
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0121096 |
CAP Oil Reservoir - Black CAP Oil Reservoir - Black |
1 | |
| 10 | 89879 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.064) O-RING (.301 x .064) |
1 | |
| 11 | 8M6002411 |
ЗАЖИМ CLIP |
1 | |
| 12 | 8M0099061 |
РУКАВ Масло Reservoir to Cooler HOSE Oil Reservoir to Cooler |
1 | |
| 13 | 8M0080036 |
ШЛАНГ В СБОРЕ Bottle to Transom HOSE ASSEMBLY Bottle to Transom |
1 | |
| 14 | 4006731 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
2 | |
| 15 | 88552616 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
3 | |
| 16 | 8M0095757 |
КРОНШТЕЙН BRACKET |
1 | |
| 17 | 8M0088265 |
СКОБА STRAP |
1 | |
| 18 | 8M0095479 |
БАЧОК СМАЗКИ В СБОРЕ LUBE BOTTLE ASSEMBLY |
1 | |
| 19 | 8067271 |
ПРОБКА Монитор смазки привода CAP Drive Lube Monitor |
1 | |
| 2 | 8M0239407 |
RESERVOIR ASSEMBLY Oil, Power Steering RESERVOIR ASSEMBLY Oil, Power Steering |
1 | |
| 20 | 72761 |
ШАЙБА (0.203 x 0.562 x 0.060), нержавеющая сталь WASHER (.203 x .562 x .060) Stainless Steel |
1 | |
| 21 | 58376 |
ВИНТ (0.164-18 x 0.375) SCREW (.164-18 x .375) |
1 | |
| 22 | 856156T04 |
ПЕРЕКЛЮЧАТЕЛЬ SWITCH |
1 | |
| 23 | 8M0214940 |
TIE STRAP TIE STRAP |
1 | |
| 24 | 8M0208402 |
CYLINDER-POWER STEERING CYLINDER-POWER STEERING |
1 | |
| 25 | 15878 |
ШТИФТ Вилка PIN Clevis |
1 | |
| 26 | 16419 |
ШТИФТ Вилка PIN Clevis |
1 | |
| 27 | 46950 |
ШПЛИНТ COTTER PIN |
2 | |
| 28 | 806232 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.239 x 0.064) O-RING (.239 x .064) |
1 | |
| 29 | 89879 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.064) O-RING (.301 x .064) |
2 | |
| 3 | 8M0083431 |
ЗАЖИМ CLAMP |
1 | |
| 30 | 865415 |
ФИТИНГ FITTING |
1 | |
| 31 | 865414001 |
ФИТИНГ FITTING |
1 | |
| 32 | 865390015 |
РУКАВ Быстроразъемное соединение вилки Cylinder to Cooler HOSE Male Quick Connect Cylinder to Cooler |
1 | |
| 33 | 8M0188618 |
CLAMP Worm Gear (11-18 mm) CLAMP Worm Gear (11-18 mm) |
2 | |
| 34 | 8M0125858 |
COOLER Power Steering Mechanical Shift COOLER Power Steering Mechanical Shift |
1 | |
| 35 | 8M0157742 |
ДАТЧИК Давление воды 50 PSI SENSOR Water Pressure 50 PSI |
1 | |
| 36 | 8M0123050 |
ФИТИНГ Колено (45 градусов) Mechanical Shift FITTING Elbow (45 Degree) Mechanical Shift |
1 | |
| 37 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 38 | 865379 |
ФИТИНГ Гнездо To Transom FITTING Female To Transom |
1 | |
| 39 | 815504210 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 4 | F698772 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 40 | 8M0088164 |
BRACKET BRACKET |
1 | |
| 5 | 8M0077292 |
РУКАВ Масло Pump to Reservoir HOSE Oil Pump to Reservoir |
1 | |
| 6 | 8M0111943 |
ШКИВ Лицевая поверхность с 4 отверстиями Use With .665 Shaft Diameter PULLEY 4 Hole Face Use With .665 Shaft Diameter |
1 | |
| 7 | 4010725 |
ВИНТ (M8 x 25) SCREW (M8 x 25) |
3 | |
| 8 | 8M0110923 |
НАСОС В СБОРЕ Диаметр вала 0,665 PUMP ASSEMBLY .665 Shaft Diameter |
1 | |
| 9 | 8M0107544 |
РУКАВ Pump to Cylinder HOSE Pump to Cylinder |
1 | |
| 9 | 8M0107543 |
РУКАВ Pump to Cylinder Bravo Fresh Water Cooling HOSE Pump to Cylinder Bravo Fresh Water Cooling |
1 | |
| NS | 8M0074363 |
ПРОБКА Clamp CAP Clamp |
1 |
