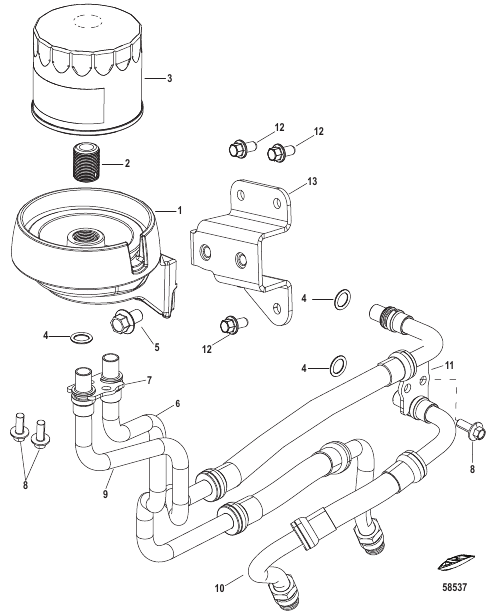

Remote Oil
Parts (13)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0095983 |
КОРПУС Выносной масляный фильтр HOUSING Remote Oil Filter |
1 | |
| 10 | 8M0162076 |
LINE Oil Block to Cooler Bracket attached on one end LINE Oil Block to Cooler Bracket attached on one end |
1 | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Bracket NOT SOLD SEPARATE Bracket |
1 | |
| 12 | 88552616 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
3 | |
| 13 | 8M0107048 |
КРОНШТЕЙН Выносной масляный бак BRACKET Remote Oil |
1 | |
| 2 | 863485 |
ФИТИНГ FITTING |
1 | |
| 3 | 866340Q03 |
ФИЛЬТР Масло марки Quicksilver FILTER Oil |
1 | |
| 4 | 8M2000565 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
4 | |
| 5 | 4010820 |
ВИНТ Шестигранный фланец (M10 x 20), нержавеющая сталь SCREW (M10 x 20) Hex Flange - Stainless Steel |
2 | |
| 6 | 8M0162077 |
LINE Oil Cooler to Filter Bracket attached on one end LINE Oil Cooler to Filter Bracket attached on one end |
1 | |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Bracket NOT SOLD SEPARATE Bracket |
1 | |
| 8 | 4010612 |
ВИНТ (M6 x 12), нержавеющая сталь SCREW (M6 x 12) Stainless Steel |
4 | |
| 9 | 8M0162073 |
LINE Oil Filter to Block LINE Oil Filter to Block |
1 |
