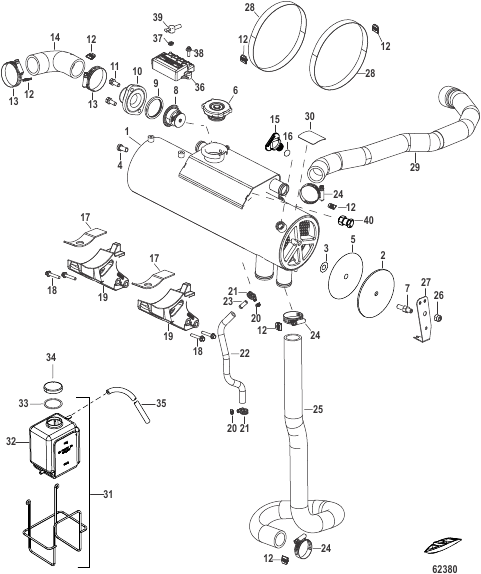

Fresh Water Cooling Heat Exchanger
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0157287 |
HEAT EXCHANGER ASSEMBLY HEAT EXCHANGER ASSEMBLY |
1 | |
| 10 | 807075A1 |
КРЫШКА COVER Thermostat |
1 | |
| 11 | 29198 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.312-18 x 0.875) SCREW AND LOCKWASHER (.312-18 x .875) |
2 | |
| 12 | 8M0074364 |
ПРОБКА COVER Hose Clamp |
AR | |
| 13 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 14 | 8M0088806 |
РУКАВ Thermostat to Exchanger HOSE Thermostat to Exchanger |
1 | |
| 15 | 8M0119211 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | |
| 16 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
1 | |
| 17 | 8M0109343 |
НАКЛАДКА Heat Exchanger PAD Heat Exchanger |
2 | |
| 18 | 8M0145100 |
ВИНТ Шестигранный фланец М8 SCREW M8 Hex Flange |
4 | |
| 19 | 8M0114796 |
КРОНШТЕЙН Теплообменник BRACKET Heat Exchanger |
2 | |
| 2 | 864708 |
КРЫШКА End Cap COVER End Cap End Cap |
2 | |
| 20 | 8M0074363 |
ПРОБКА CAP |
2 | |
| 21 | 8M0188618 |
CLAMP Worm Gear (11-18 mm) CLAMP Worm Gear (11-18 mm) |
2 | |
| 22 | 8M0086594 |
РУКАВ Fuel Module to Heat Exchanger HOSE Fuel Module to Heat Exchanger |
1 | |
| 23 | 8M0085864 |
ФИТИНГ FITTING |
1 | |
| 24 | 8M0188622 |
HOSE CLAMP HOSE CLAMP |
3 | |
| 25 | 8M0085910 |
РУКАВ Distribution Housing to Heat Exchanger HOSE Distribution Housing to Heat Exchanger |
1 | |
| 26 | 82670912 |
ГАЙКА (0.375-16), нержавеющая сталь NUT (.375-16) Stainless Steel |
1 | |
| 27 | 8M0081037 |
КРОНШТЕЙН Air Actuator BRACKET Air Actuator |
1 | |
| 28 | 8M0109309 |
ЗАЖИМ Heat Exchanger CLAMP Heat Exchanger |
2 | |
| 29 | 8M0094644 |
РУКАВ Exchanger to Poppet Valve HOSE Exchanger to Poppet Valve |
1 | |
| 3 | 8M0039163 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (3/8 x 1/8) O-RING (3/8 x 1/8) |
4 | |
| 30 | 8M0241512 |
DECAL SET QuickSilver 6.2 FWC DECAL SET QuickSilver 6.2 FWC |
1 | |
| 30 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО DECAL-Drain NOT SOLD SEPARATE DECAL-Drain |
1 | |
| 30 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО DECAL-Mercathode NOT SOLD SEPARATE DECAL-Mercathode |
1 | |
| 31 | 71587A10 |
КОМПЛЕКТ ДЛЯ ВОССТАНОВЛЕНИЯ Охлаждающая жидкость RECOVERY KIT Coolant |
1 | |
| 32 | 71587A11 |
БАЧОК Пластик BOTTLE Plastic |
1 | |
| 33 | 71614 |
ПРОКЛАДКА GASKET |
1 | |
| 34 | 72058 |
ПРОБКА CAP Bottle |
1 | |
| 35 | 1983389 |
РУКАВ HOSE |
1 | |
| 36 | 8M0100517 |
ПУЛЬТ MERCATHODE MerCathode See full Mercathode breakdown for details MERCATHODE CONTROLLER MerCathode See full Mercathode breakdown for details |
1 | |
| 37 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
4 | |
| 38 | 82104520 |
ВИНТ (M5 x 20) SCREW (M5 x 20) |
2 | |
| 39 | 86606 |
ЧЕХОЛ Изолятор – черный BOOT Insulator - Black |
4 | |
| 4 | 94247 |
ВИНТ (0.375-16 x 0.750), нержавеющая сталь SCREW (.375-16 x .750) Stainless Steel |
1 | |
| 40 | 818390 |
КРАН СЛИВА DRAIN COCK |
1 | |
| 5 | 8M0084884 |
УПЛОТНЕНИЕ SEAL Flat |
2 | |
| 6 | 8148791 |
ПРОБКА Pressure CAP Pressure |
1 | |
| 7 | 8M0029252 |
ШПИЛЬКА STUD HEX HD 3/8-16 |
1 | |
| 8 | 864493 |
ТЕРМОСТАТ 77°C (170°F) THERMOSTAT 77°C (170°F) |
1 | |
| 9 | 8071341 |
УПЛОТНЕНИЕ SEAL Thermostat |
1 |
