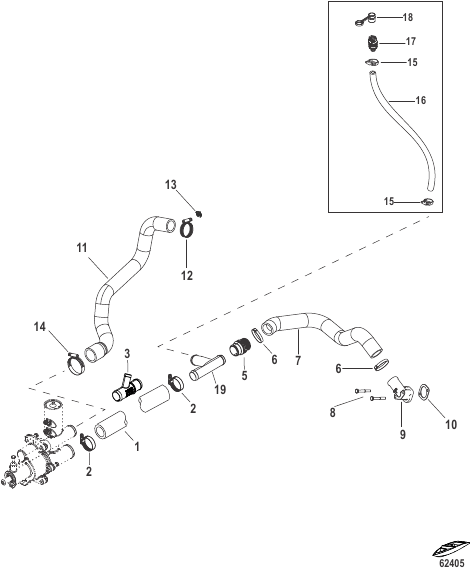

Fresh Water Cooling Sea Pump Hoses
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0062666 |
РУКАВ (Общая длина 96.00") (Cut to Length) HOSE (96.00 Inches Bulk) (Cut to Length) |
1 | |
| 1 | 8M0062653 |
РУКАВ (4") (Additional Inlet Applications) HOSE (4 Inches) (Additional Inlet Applications) |
A/R | |
| 10 | 8M0109475 |
ПРОКЛАДКА Hose Connector GASKET Hose Connector |
1 | |
| 11 | 8M2023904 |
РУКАВ Sea Pump to PS Cooler HOSE Sea Pump to PS Cooler |
1 | |
| 12 | 815504220 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 13 | 8M0074364 |
ПРОБКА COVER Hose Clamp |
A/R | |
| 14 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 15 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 16 | 8M0103147 |
РУКАВ Заподлицо Flush Fitting to Y Fitting HOSE Flush Flush Fitting to Y Fitting |
1 | |
| 17 | 861406 |
ГНЕЗДО SOCKET |
1 | |
| 18 | 858240 |
ПРОБКА CAP Tethered |
1 | |
| 19 | 8M4501756 |
ФИТИНГ Y-FITTING |
1 | |
| 2 | 8M0188622 |
HOSE CLAMP HOSE CLAMP |
4 | |
| 3 | 864727 |
ФИТИНГ Y, (3) 1-1/4" Н.Д. ниппелей шлангов (Additional Inlet Applications) FITTING Y, (3) 1-1/4 In. OD Hose Barbs (Additional Inlet Applications) |
A/R | |
| 4 | 865362 |
БЫСТРОРАЗЪЕМНЫЙ QUICK CONNECT |
1 | |
| 5 | 865324 |
БЫСТРОРАЗЪЕМНЫЙ Bravo QUICK CONNECT Bravo |
1 | |
| 6 | 8M6001459 |
ЗАЖИМ (45.5) CLAMP (45.5) |
2 | |
| 7 | 8M0109511 |
РУКАВ Water HOSE Water |
1 | |
| 8 | 73015 |
ВИНТ (0.250-20 x 1.75) SCREW (.250-20 x 1.75) |
2 | |
| 9 | 8M0111791 |
КОРПУС Впуск HOUSING Water Inlet |
1 |
