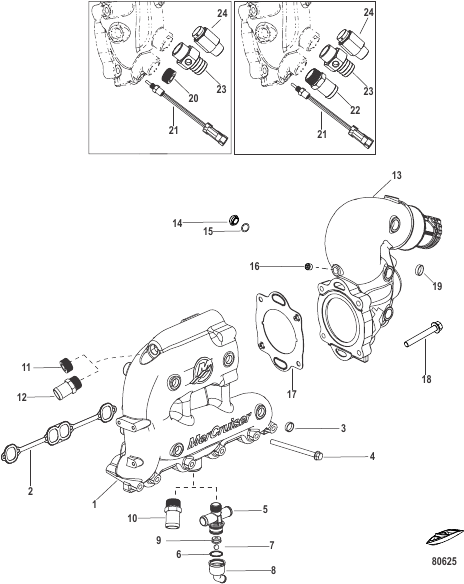

Exhaust Manifold and Elbow
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0103774 |
ВПУСКНОЙ КОЛЛЕКТОР Выхлоп Port MANIFOLD ASSEMBLY Exhaust Port |
1 | |
| 1 | 8M0103773 |
ВПУСКНОЙ КОЛЛЕКТОР Выхлоп Starboard MANIFOLD ASSEMBLY Exhaust Starboard |
1 | |
| 10 | 866725 |
ФИТИНГ Прямой (0.750-14) (Closed Cooling) FITTING Straight (.750-14) (Closed Cooling) |
2 | |
| 11 | 8M0204679 |
FITTING Pipe - Brass (.750-14) (Standard Cooling) FITTING Pipe - Brass (.750-14) (Standard Cooling) |
2 | |
| 12 | 866725 |
ФИТИНГ Прямой (0.750-14) (Closed Cooling) FITTING Straight (.750-14) (Closed Cooling) |
2 | |
| 13 | 8M0153670 |
ELBOW ASSEMBLY 2 Inch Riser (Includes Port & Starboard) ELBOW ASSEMBLY 2 Inch Riser (Includes Port & Starboard) |
1 | |
| 13 | 8M0154270 |
ELBOW ASSEMBLY No Rise Port ELBOW ASSEMBLY No Rise Port |
AR | |
| 13 | 8M0154271 |
ELBOW ASSEMBLY No Rise Starboard ELBOW ASSEMBLY No Rise Starboard |
AR | |
| 13 | 8M0153671 |
ELBOW ASSEMBLY 4 Inch Riser (Includes Port & Starboard) ELBOW ASSEMBLY 4 Inch Riser (Includes Port & Starboard) |
AR | |
| 13 | 8M0153486 |
ELBOW ASSEMBLY 6 Inch Riser (Includes Port & Starboard) ELBOW ASSEMBLY 6 Inch Riser (Includes Port & Starboard) |
AR | |
| 14 | 8M0082363 |
ПРОБКА Non-Catalyzed PLUG Non-Catalyzed |
4 | |
| 15 | 8M0097283 |
ШАЙБА Медь Non-Catalyzed WASHER Copper Non-Catalyzed |
4 | |
| 16 | 8M0180564 |
PLUG (.250-18) Included in Elbow Assemblies PLUG (.250-18) Included in Elbow Assemblies |
1 | |
| 17 | 8M2004606 |
ПРОКЛАДКА (Closed Cooling) GASKET (Closed Cooling) |
2 | |
| 17 | 8M2004414 |
ПРОКЛАДКА Included in Elbow Assemblies (Standard Cooling) GASKET Included in Elbow Assemblies (Standard Cooling) |
2 | |
| 18 | 668631 |
ВИНТ (0.375-16 x 2.500) SCREW (.375-16 x 2.500) |
4 | |
| 19 | 864689 |
ПРОБКА Расширитель Included in Elbow Assemblies PLUG Expansion Included in Elbow Assemblies |
4 | |
| 2 | 8M2000819 |
ПРОКЛАДКА GASKET |
2 | |
| 20 | 8M0204679 |
FITTING Pipe - Brass (.750-14) Included in Elbow Assemblies (Standard Cooling) FITTING Pipe - Brass (.750-14) Included in Elbow Assemblies (Standard Cooling) |
2 | |
| 21 | 8M0148668 |
SENSOR ASSEMBLY Temperature SENSOR ASSEMBLY Temperature |
2 | |
| 22 | 866725 |
ФИТИНГ Прямой (0.750-14) (Closed Cooling) FITTING Straight (.750-14) (Closed Cooling) |
2 | |
| 23 | 864623 |
ФИТИНГ FITTING |
2 | |
| 24 | 8M0103408 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | |
| 3 | 864689 |
ПРОБКА Расширитель PLUG Expansion |
10 | |
| 4 | 8M0144800 |
ВИНТ SCREW |
12 | |
| 5 | 8M0133716 |
FITTING ASSEMBLY (Standard Cooling) FITTING ASSEMBLY (Standard Cooling) |
2 | |
| 6 | 864701 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.112 x 0.103) (Standard Cooling) O-RING (1.112 x .103) (Standard Cooling) |
1 | |
| 7 | 863129 |
ШАРИК (Standard Cooling) BALL (Standard Cooling) |
1 | |
| 8 | 862994T |
ФИТИНГ (Standard Cooling) FITTING (Standard Cooling) |
1 | |
| 9 | 8M0059679 |
СЕДЛО ШАРИКА Резина (Standard Cooling) BALL SEAT Rubber (Standard Cooling) |
2 |
