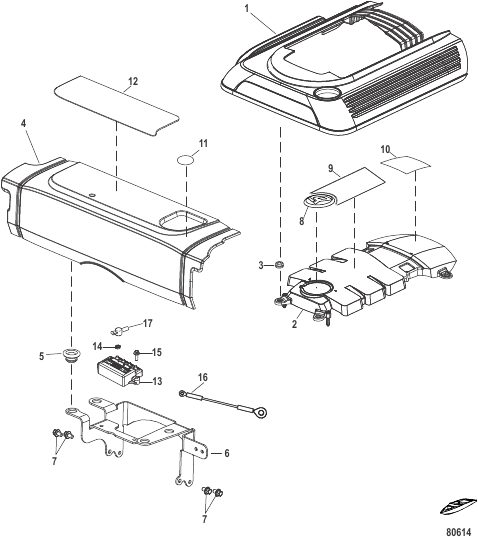

Top and Front Covers
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0240964 |
COVER Engine COVER Engine |
1 | |
| 10 | 8M0241042 |
DECAL Rear Cover DECAL Rear Cover |
1 | |
| 11 | 8M0106608 |
DECAL No Step DECAL No Step |
1 | |
| 12 | 8M0241037 |
DECAL SPEC 6.2L RWC Raw Water Cooling DECAL SPEC 6.2L RWC Raw Water Cooling |
1 | |
| 13 | 8M0100517 |
ПУЛЬТ MERCATHODE MerCathode See full Mercathode breakdown for details Raw Water Cooling MERCATHODE CONTROLLER MerCathode See full Mercathode breakdown for details Raw Water Cooling |
1 | |
| 14 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь Raw Water Cooling NUT (#10-32) Stainless Steel Raw Water Cooling |
4 | |
| 15 | 82104520 |
ВИНТ (M5 x 20) Raw Water Cooling SCREW (M5 x 20) Raw Water Cooling |
2 | |
| 16 | 879148T43 |
ПРОВОД Заземление WIRE Ground |
1 | |
| 17 | 86606 |
ЧЕХОЛ Изолятор – черный Raw Water Cooling BOOT Insulator - Black Raw Water Cooling |
4 | |
| 2 | 8M0106637 |
КРЫШКА Впуск COVER Intake |
1 | |
| 3 | 8M0096302 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | |
| 4 | 8M0095456 |
КРЫШКА Front Raw Water Cooling COVER Front Raw Water Cooling |
1 | |
| 5 | 8M2001671 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Raw Water Cooling GROMMET Raw Water Cooling |
4 | |
| 6 | 8M0095455 |
КРОНШТЕЙН Raw Water Cooling BRACKET Raw Water Cooling |
1 | |
| 7 | 8M2600010 |
ВИНТ (M6x10) Raw Water Cooling SCREW (M6x10) Raw Water Cooling |
4 | |
| 8 | 8M0241043 |
DECAL SET Q-Icon DECAL SET Q-Icon |
1 | |
| 9 | 8M0241039 |
DECAL 6.2L Cover DECAL 6.2L Cover |
1 | |
| NS | 8M0085360 |
НАКЛЕЙКА Снимите крышку DECAL Remove Cover |
1 |
