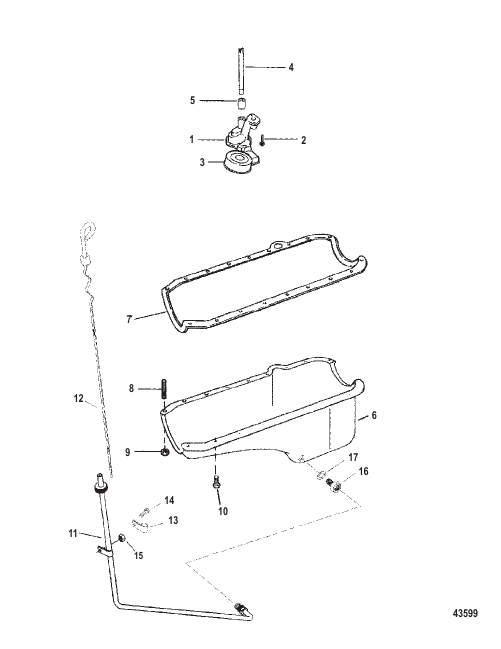

Oil Pan And Oil Pump
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 824326A02 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 1 | 809907002 |
НАСОС В СБОРЕ Масло PUMP ASSEMBLY Oil |
1 | |
| 10 | 726071 |
ВИНТ (5/16-18x x 0.875) SCREW (5/16-18x x .875) |
10 | |
| 11 | 860209A1 |
ТРУБА Щуп TUBE Dipstick |
1 | |
| 12 | 861942T6 |
УКАЗАТЕЛЬ Уровень масла GAUGE Oil Level |
1 | |
| 13 | 805625 |
ЗАЖИМ Dipstick Tube CLIP Dipstick Tube |
1 | |
| 14 | 8M0040582 |
ВИНТ SCREW |
1 | |
| 14 | 40011126 |
ВИНТ (M6 x 13), нержавеющая сталь SCREW (M6 x 13) Stainless Steel |
1 | |
| 15 | 29250 |
ГАЙКА (0.312-24) NUT (.312-24) |
1 | |
| 16 | 807804 |
ФИТИНГ FITTING |
1 | |
| 17 | 8M0077608 |
ПРОКЛАДКА Drain GASKET Drain |
1 | |
| 2 | 17346 |
ВИНТ SCREW |
1 | |
| 3 | 8099081 |
ЭКРАН SCREEN |
1 | |
| 4 | 36184 |
ВАЛ SHAFT |
1 | |
| 5 | 36183 |
ФИКСАТОР RETAINER |
1 | |
| 6 | 804912T01 |
ПОДДОН Масло Aluminum PAN Oil Aluminum |
1 | discontinued |
| 7 | 14247T1 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 8 | 11989 |
ШПИЛЬКА (0.312-18 x 1.6718) STUD (.312-18 x 1.6718) |
2 | |
| 9 | 8M0148822 |
NUT NUT |
2 |
