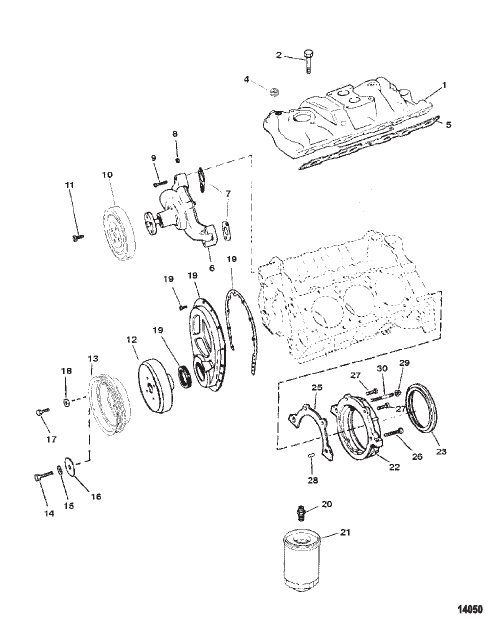

Intake Manifold And Front Cover
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 824326A02 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 1 | 8M0120385 |
ВПУСКНОЙ КОЛЛЕКТОР Впуск (4 BBL) MANIFOLD ASSEMBLY Intake (4 BBL) |
1 | |
| 10 | 8M0153706 |
PULLEY PULLEY |
1 | |
| 11 | 47277 |
ВИНТ (0.312-24 x 0.750) SCREW (.312-24 x .750) |
4 | |
| 12 | 809892T |
БАЛАНСИР Виброгаситель BALANCER Harmonic |
1 | |
| 13 | 807730T |
ШКИВ PULLEY |
1 | |
| 14 | 8M2021674 |
ВИНТ (0.437-20 x 2.50) SCREW (.437-20 x 2.50) |
1 | |
| 15 | 39131 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
1 | |
| 16 | 35332001 |
ШАЙБА WASHER |
1 | |
| 17 | 34352 |
ВИНТ (0.375-24 x 0.875) SCREW (.375-24 x .875) |
3 | |
| 18 | 34714 |
ШАЙБА WASHER |
3 | |
| 19 | 809893T |
РАСПРЕДЕЛИТЕЛЬНАЯ КРЫШКА В СБОРЕ Screws, Grommets And Oil Seal Are Not Sold Separately (Use With Out Crankshaft Sensor) TIMING COVER ASSEMBLY Screws, Grommets And Oil Seal Are Not Sold Separately (Use With Out Crankshaft Sensor) |
1 | |
| 2 | 835004 |
БОЛТ (0.312-18 x 1.75) BOLT (.312-18 x 1.75) |
8 | |
| 20 | 11972 |
(With Out Remote Oil Filter) ADAPTER (With Out Remote Oil Filter) |
1 | |
| 21 | 883702K |
ФИЛЬТР FILTER |
1 | |
| 21 | 883702Q |
ФИЛЬТР FILTER |
1 | |
| 22 | 804910001 |
ФИКСАТОР Seal RETAINER Seal |
1 | |
| 23 | 879194364 |
УПЛОТНЕНИЕ Oil SEAL Oil |
1 | |
| 25 | 881715 |
ПРОКЛАДКА GASKET |
1 | |
| 26 | 8M0064241 |
БОЛТ BOLT |
1 | |
| 27 | 14242 |
БОЛТ (0.250-20 x 0.875) BOLT (.250-20 x .875) |
2 | |
| 28 | 14263 |
ШТИФТ Штифт PIN Dowel |
1 | |
| 29 | 11996 |
ГАЙКА NUT |
1 | |
| 3 | 802655 |
ВИНТ SCREW |
4 | |
| 30 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО STUD NOT SOLD SEPARATE STUD |
1 | |
| 4 | 75983 |
ПРОБКА PLUG |
1 | |
| 5 | 824326002 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 6 | 8M0113734 |
ВОДЯНОЙ НАСОС В СБОРЕ WATER PUMP ASSEMBLY |
1 | |
| 7 | 34897 |
ПРОКЛАДКА GASKET |
2 | |
| 8 | 48336 |
ПРОБКА Водяной насос PLUG Water Pump |
1 | discontinued |
| 9 | 8M0076418 |
ШПИЛЬКА STUD |
1 | |
| 9 | 47688 |
ВИНТ (0.375-16 x 2.750) SCREW (.375-16 x 2.750) |
1 | |
| 9 | 35342 |
ШПИЛЬКА (0.312-24/0.375-16 x 2.5625) STUD (.312-24/.375-16 x 2.5625) |
2 | superseded |
