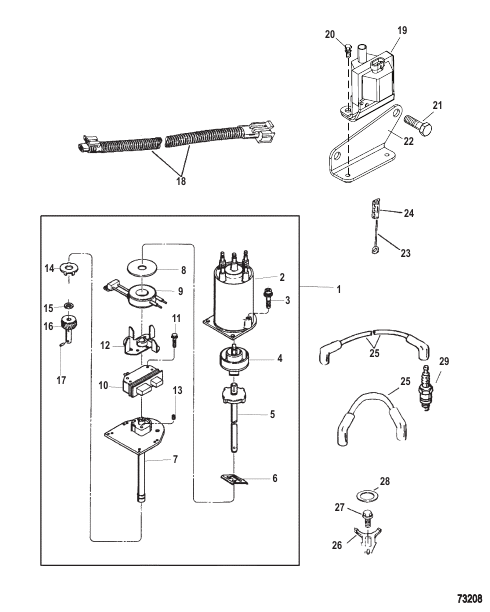

Distributor
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 807756A96 |
КОМПЛЕКТ ПРОКЛАДОК Капитальный ремонт двигателя GASKET SET Engine Overhaul |
1 | |
| 1 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО DISTRIBUTOR NOT SOLD SEPARATE DISTRIBUTOR |
1 | |
| 10 | 8M6008208 |
MODULE MODULE |
1 | |
| 11 | 811638 |
ВИНТ SCREW |
2 | discontinued |
| 12 | 850492 |
ПОЛЮСНЫЙ БАШМАК POLE PIECE |
1 | discontinued |
| 13 | 808488 |
ШТИФТ PIN |
1 | discontinued |
| 14 | 46350 |
ШАЙБА WASHER |
1 | discontinued |
| 15 | 808489 |
ШАЙБА WASHER |
1 | discontinued |
| 16 | 850493 |
ПЕРЕДАЧА Привод GEAR Drive |
1 | discontinued |
| 17 | 34109 |
ШТИФТ PIN |
1 | discontinued |
| 18 | 817376T01 |
ЖГУТ ПРОВОДОВ В СБОРЕ Distributor Module to Ignition Coil HARNESS ASSEMBLY Distributor Module to Ignition Coil |
1 | |
| 19 | 8M0054588 |
КАТУШКА COIL |
1 | |
| 2 | 850484T2 |
DISTRIBUTOR CAP DISTRIBUTOR CAP |
1 | |
| 20 | 657461 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.250-20 x 0.625) SCREW AND LOCKWASHER (.250-20 x .625) |
2 | |
| 21 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
2 | |
| 22 | 8M0184056 |
BRACKET BRACKET |
1 | |
| 23 | 90096A1 |
ШПИЛЬКА В СБОРЕ (№10-32 x специальн.) STUD ASSEMBLY (#10-32 x Special) |
2 | |
| 24 | 72821 |
ФИКСАТОР RETAINER |
2 | |
| 25 | 816608A82 |
КОМПЛЕКТ КАБЕЛЯ Зажигание (SPARK PLUGS & COIL) CABLE KIT Ignition (SPARK PLUGS & COIL) |
1 | superseded |
| 26 | 52185 |
ЗАЖИМ CLAMP |
1 | superseded |
| 27 | 805559 |
ВИНТ (0.375-16 x 0.875), нержавеющая сталь SCREW (.375-16 x .875) Stainless Steel |
1 | |
| 28 | 344863 |
ПРОКЛАДКА GASKET |
1 | |
| 29 | 816336 |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
6 | superseded |
| 3 | 808491 |
ВИНТ SCREW |
2 | discontinued |
| 4 | 8M0062084 |
ROTOR ROTOR |
1 | |
| 5 | 850486 |
ВАЛ В СБОРЕ Главный SHAFT ASSEMBLY Main |
1 | discontinued |
| 6 | 808487 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 7 | 850488 |
КОРПУС HOUSING |
1 | discontinued |
| 8 | 850490 |
ЭКРАН SHIELD |
1 | discontinued |
| 9 | 811639T |
КАТУШКА COIL |
1 |
