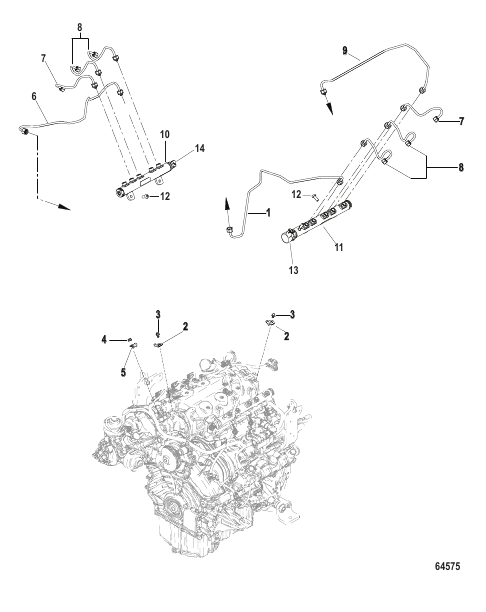

Fuel System Rail and Lines
Parts (14)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0129870 |
ТРУБА Топливо TUBE Fuel |
1 | |
| 10 | 8M0129709 |
НАПРАВЛЯЮЩАЯ RAIL |
1 | |
| 11 | 8M0129710 |
НАПРАВЛЯЮЩАЯ RAIL |
1 | superseded |
| 12 | 8M0129750 |
ВИНТ SCREW |
4 | |
| 13 | 8M0166754 |
REGULATOR Fuel Pressure REGULATOR Fuel Pressure |
1 | |
| 14 | 8M0172255 |
SENSOR Fuel Pressure SENSOR Fuel Pressure |
1 | |
| 2 | 898101512 |
ЗАЖИМ CLAMP |
2 | |
| 3 | 898101548 |
ВИНТ SCREW |
2 | |
| 4 | 898101541 |
ГАЙКА NUT |
1 | |
| 5 | 8M0129905 |
ЗАЖИМ CLAMP |
1 | |
| 6 | 8M0129869 |
ТРУБА Топливо TUBE Fuel |
1 | |
| 7 | 8M0129867 |
ТРУБА Топливо TUBE Fuel |
2 | |
| 8 | 8M0129868 |
ТРУБА Топливо TUBE Fuel |
4 | |
| 9 | 8M0129846 |
ТРУБА Топливо TUBE Fuel |
1 |
