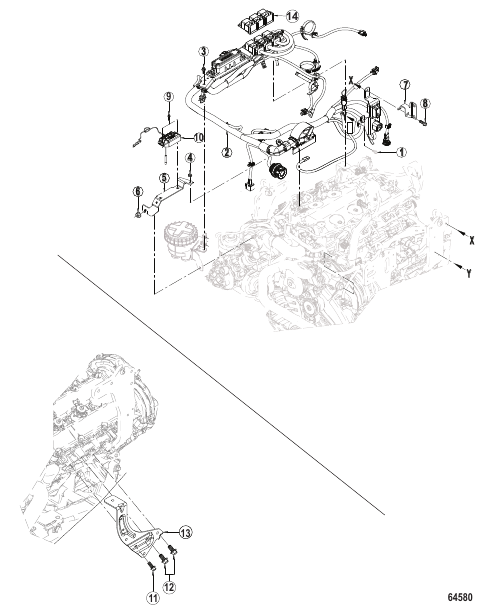

Electrical Engine Harness
Parts (14)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 898101550 |
ВИНТ SCREW |
1 | |
| 10 | 8M0125489 |
MERCATHODE Дизель MERCATHODE KIT Diesel |
1 | |
| 11 | 898101555 |
ВИНТ SCREW |
1 | |
| 12 | 898101562 |
ВИНТ SCREW |
2 | |
| 13 | 8M0129647 |
КРОНШТЕЙН Relay Harness Support BRACKET Relay Harness Support |
1 | superseded |
| 14 | 898101794 |
РЕЛЕ Component of Harness Assembly #2 RELAY Component of Harness Assembly #2 |
3 | |
| 2 | 8M0129923 |
ЭЛЕКТРОПРОВОДКА Реле и предохранитель Main Engine WIRE HARNESS Relay and Fuse Main Engine |
1 | superseded |
| 3 | 898101550 |
ВИНТ SCREW |
1 | |
| 4 | 898101541 |
ГАЙКА NUT |
1 | |
| 5 | 8M0129643 |
КРОНШТЕЙН Mercathode BRACKET Mercathode |
1 | superseded |
| 6 | 898101543 |
ГАЙКА NUT |
1 | |
| 7 | 8M0129649 |
КРОНШТЕЙН BRACKET |
1 | |
| 8 | 898101562 |
ВИНТ SCREW |
1 | |
| 9 | 898101547 |
ВИНТ SCREW |
2 |
