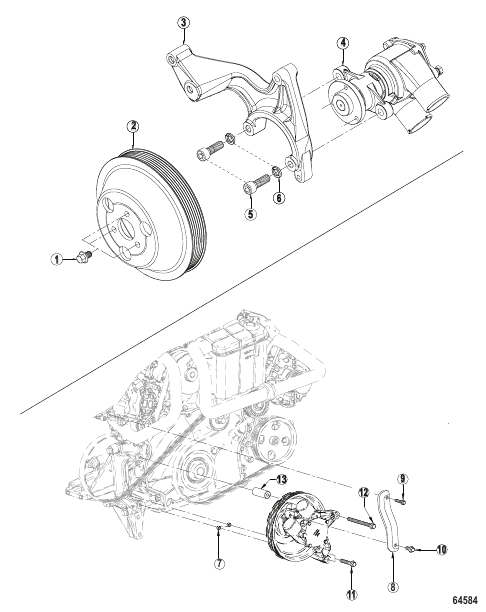

Sea Water Pump Pump, Bracket and Pulley
Parts (13)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 898101554 |
ВИНТ SCREW |
1 | |
| 10 | 898101555 |
ВИНТ SCREW |
1 | |
| 11 | 8M0129767 |
ВИНТ – ФЛАНЦЕВЫЙ SCREW-FLANGED |
2 | |
| 12 | 898101560 |
ВИНТ SCREW |
1 | |
| 13 | 8M0129804 |
ПРОСТАВКА SPACER |
1 | |
| 2 | 8M0129708 |
ШКИВ PULLEY |
1 | superseded |
| 3 | 8M0129651 |
КРОНШТЕЙН BRACKET |
1 | superseded |
| 4 | 8M0129714 |
НАСОС ДЛЯ ЗАБОРТНОЙ ВОДЫ SEAWATER PUMP |
1 | superseded |
| 5 | 879194123 |
ШАЙБА WASHER |
1 | |
| 6 | 8M0129754 |
ВИНТ SCREW |
1 | |
| 7 | 8M0129794 |
ШТИФТ DOWEL |
2 | |
| 8 | 8M0129652 |
КРОНШТЕЙН BRACKET |
1 | superseded |
| 9 | 898101773 |
ВИНТ SCREW |
1 |
