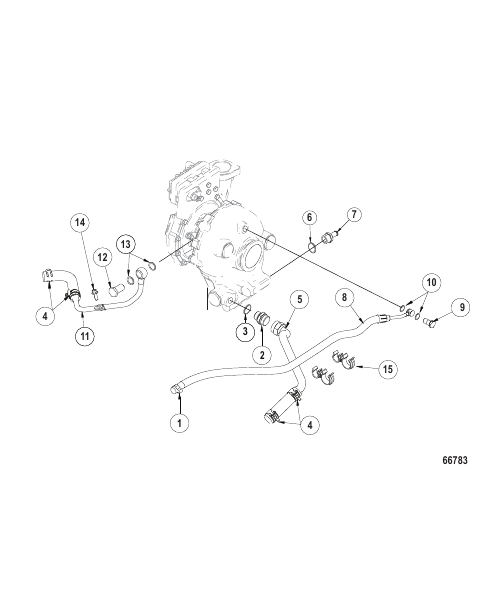

Turbocharger Cooling Lines
Parts (14)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0129909 |
ЗАЖИМ CLAMP |
1 | |
| 10 | 881791 |
ШАЙБА WASHER |
2 | |
| 11 | 8M0129862 |
РУКАВ Water, To Thermostat Housing HOSE Water, To Thermostat Housing |
1 | |
| 12 | 8M0129628 |
БОЛТ КОЖУХА BANJO BOLT |
1 | |
| 13 | 809963201 |
ШАЙБА WASHER |
2 | superseded |
| 14 | 898101550 |
ВИНТ SCREW |
1 | |
| 2 | 8M0129783 |
ФИТИНГ (M18–M22) FITTING (M18-M22) |
1 | |
| 3 | 8M0129836 |
ПРОКЛАДКА GASKET |
1 | |
| 4 | 8M0129902 |
ЗАЖИМ CLAMP |
1 | |
| 5 | 8M0129880 |
ТРУБА Вода To Oil Cooler TUBE Water To Oil Cooler |
1 | superseded |
| 6 | 8M0129837 |
ПРОКЛАДКА GASKET |
1 | |
| 7 | 8M0129798 |
ФИТИНГ FITTING |
1 | superseded |
| 8 | 8M0129884 |
ТРУБА Water, To Coolant Reservoir TUBE Water, To Coolant Reservoir |
1 | |
| 9 | 801333874 |
ВИНТ Кожух (M10) SCREW Banjo (M10) |
1 |
