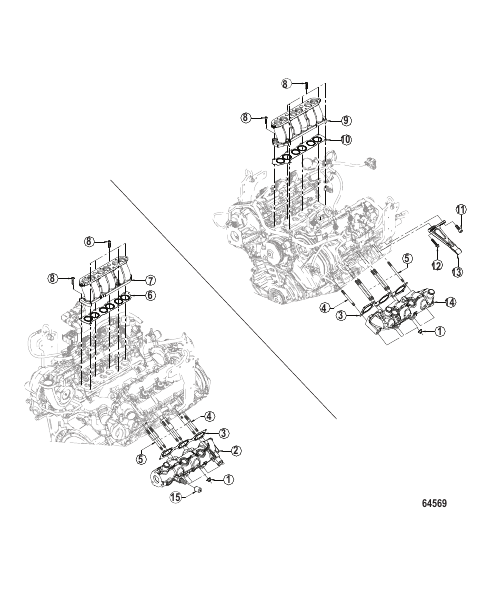

Air Collector and Exhaust Manifold
Parts (14)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0129779 |
ГАЙКА NUT |
12 | |
| 10 | 8M0129833 |
ПРОКЛАДКА GASKET |
2 | |
| 11 | 8M0129754 |
ВИНТ SCREW |
1 | |
| 12 | 898101620 |
ВИНТ SCREW |
1 | |
| 13 | 8M0129644 |
КРОНШТЕЙН BRACKET |
1 | |
| 14 | 8M0129680 |
ВЫХЛОПНОЙ КОЛЛЕКТОР Port EXHAUST MANIFOLD Port |
1 | superseded |
| 2 | 8M0129679 |
ВЫХЛОПНОЙ КОЛЛЕКТОР Starboard EXHAUST MANIFOLD Starboard |
1 | superseded |
| 3 | 8M0129840 |
ПРОКЛАДКА GASKET |
2 | |
| 4 | 8M0129787 |
ШПИЛЬКА (M8X75) STUD (M8X75) |
10 | |
| 5 | 8M0129788 |
ШПИЛЬКА (M8x95) STUD (M8x95) |
2 | |
| 6 | 8M0129841 |
ПРОКЛАДКА GASKET |
1 | |
| 7 | 8M0129621 |
ВОЗДУХОЗАБОРНИК Port AIR INTAKE Port |
1 | superseded |
| 8 | 8M0129753 |
ВИНТ SCREW |
12 | |
| 9 | 8M0129622 |
ВОЗДУХОЗАБОРНИК Starboard AIR INTAKE Starboard |
1 |
