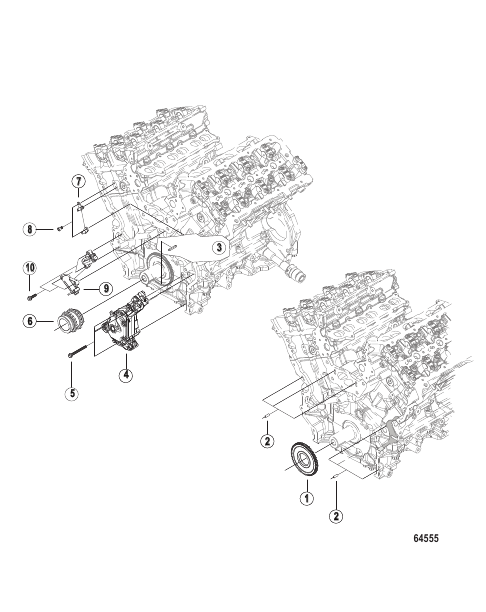

Cylinder Block Oil Pump and Timing Tensioner
Parts (12)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0129890 |
ПЕРЕДАЧА Oil Pump Drive Design I [70381055] & Below GEAR Oil Pump Drive Design I [70381055] & Below |
1 | |
| 1 | 8M6010908 |
GEAR Oil Pump Drive Design II [70381056] & Up GEAR Oil Pump Drive Design II [70381056] & Up |
1 | |
| 10 | 898101619 |
ВИНТ SCREW |
4 | |
| 2 | 801331647 |
ШТИФТ PIN |
6 | |
| 3 | 8M0129701 |
КЛЮЧ Harmonic Damper KEY Harmonic Damper |
1 | |
| 4 | 8M0129705 |
МАСЛЯНЫЙ НАСОС В СБОРЕ OIL PUMP ASSY |
1 | |
| 5 | 8M0129766 |
ВИНТ – ФЛАНЦЕВЫЙ SCREW-FLANGED |
4 | |
| 6 | 8M0129891 |
ВЕНЦОВАЯ ШЕСТЕРНЯ Timing Chain Drive Design I [70381055] & Up RING GEAR Timing Chain Drive Design I [70381055] & Up |
1 | |
| 6 | 8M6010918 |
RING GEAR Design II [70381056] & Below RING GEAR Design II [70381056] & Below |
1 | |
| 7 | 8M0129738 |
ВПРЫСК МАСЛА OIL JET |
2 | |
| 8 | 898101564 |
ВИНТ SCREW |
2 | |
| 9 | 8M0129659 |
НАТЯЖНОЕ УСТРОЙСТВО TENSIONER |
2 |
