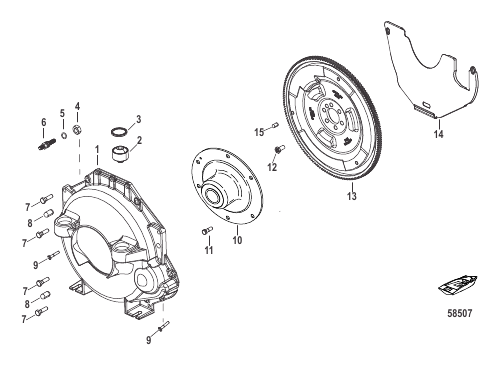

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0104915 | HOUSING ASSEMBLY Flywheel | 1 | |
| 10 | 8M0098795 | COUPLER ASSEMBLY | 1 | |
| 11 | 14883 | SCREW (.375-16 x 1.12) | 6 | superseded |
| 12 | 8M0076509 | SCREW (.4375 x 20) | 6 | superseded |
| 13 | 8M0123130 | FLYWHEEL ASSEMBLY | 1 | |
| 14 | 807260A2 | COVER KIT Flywheel | 1 | |
| 15 | NSS | NOT SOLD SEPARATE Pin | 1 | |
| 2 | 8M0097266 | RUBBER MOUNT | 2 | |
| 3 | 8M0087147 | SPACER | 2 | |
| 4 | 40125100 | NUT (M10) | 3 | |
| 5 | 400248 | LOCKWASHER (M10) | 2 | |
| 6 | 861577 | STUD Double Ended Metric (M10) | 2 | |
| 7 | 40001197 | SCREW (M10 x 35) | 4 | |
| 8 | 8M0092110 | PIN Dowel | 2 | |
| 9 | 76596 | SCREW (.250-20 x 1.250) | 2 | |
| NS | 49099 | FITTING | 2 | superseded |
