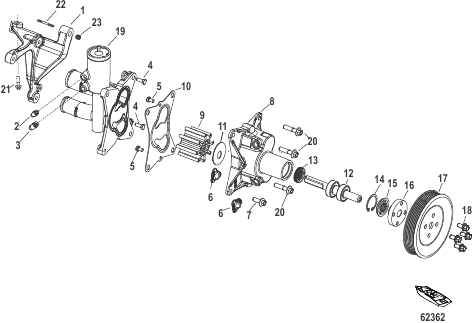

Sea Water Pump
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0122666 |
КОМПЛЕКТ НАСОСА ДЛЯ ЗАБОРТНОЙ ВОДЫ (With Distribution Housing) SEA PUMP KIT (With Distribution Housing) |
1 | |
| - | 8M0122667 |
НАСОС ДЛЯ ЗАБОРТНОЙ ВОДЫ В СБОРЕ Забортная вода SEA PUMP ASSEMBLY Sea Water |
1 | |
| 1 | 8M0075090 |
КРОНШТЕЙН BRACKET |
1 | |
| 10 | 8M0114788 |
ПЛАСТИНА Износ, уплотнение SEAL Wear Plate |
1 | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Wear Plate NOT SOLD SEPARATE Wear Plate |
1 | |
| 12 | 8M0140001 |
DRIVESHAFT ASSEMBLY KIT DRIVESHAFT ASSEMBLY KIT |
1 | |
| 13 | 8M0146317 |
SEAL SEAL |
1 | |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Snap Ring NOT SOLD SEPARATE Snap Ring |
1 | |
| 15 | 862040 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 16 | 8M0109086 |
ВТУЛКА HUB |
1 | |
| 17 | 8M0158970 |
PULLEY PULLEY |
1 | |
| 18 | 88552616 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
4 | |
| 19 | 8M0122664 |
КРЫШКА В СБОРЕ Насос забортной воды COVER ASSEMBLY Sea Pump |
1 | |
| 2 | 8M0082321 |
ФИТИНГ (90 градусов) FITTING (90 Degree) |
1 | |
| 20 | 4010735 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
3 | |
| 21 | 892086035 |
ВИНТ (M10 x 35) SCREW (M10 x 35) |
1 | |
| 22 | 8M0144671 |
STUD (M10x1.5x55) STUD (M10x1.5x55) |
1 | |
| 23 | 8M0145569 |
NUT (M10 Flange) NUT (M10 Flange) |
1 | |
| 3 | 8M0082322 |
ФИТИНГ Оранжевый (90 градусов) FITTING Orange (90 Degree) |
1 | |
| 4 | 8M0214928 |
SCREW (M6 x 16) SCREW (M6 x 16) |
2 | |
| 5 | 4000325 |
ВИНТ (M6 x 8) SCREW (M6 x 8) |
2 | |
| 6 | 8M0119211 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
2 | |
| 7 | 4010720 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
1 | |
| 8 | 8M0139978 |
PUMP KIT Sea Water PUMP KIT Sea Water |
1 | |
| 9 | 8M0137221 |
IMPELLER KIT Heavy Duty IMPELLER KIT Heavy Duty |
1 |
