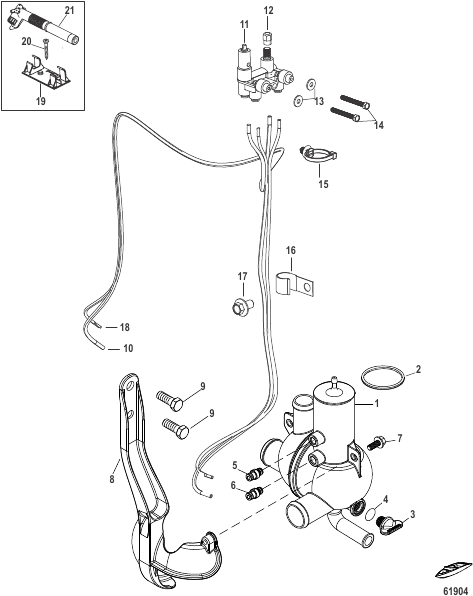

Water Distribution Housing Air Actuated Drain
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863802T2 |
КОРПУС Water Distribution HOUSING Water Distribution |
1 | |
| 10 | 8M0062603 |
ТРУБА (2440 ММ) Cut to Length TUBE (2440 MM) Cut to Length |
1 | |
| 11 | 863053T |
ВПУСКНОЙ КОЛЛЕКТОР MANIFOLD ASSEMBLY |
1 | |
| 12 | 8M0046566 |
ПРОБКА CAP Valve |
1 | |
| 13 | 4002314 |
ШАЙБА WASHER |
2 | |
| 14 | 864887 |
ВИНТ (M5) SCREW M5 5.50 x 14.0 x 1.5 SS |
2 | |
| 15 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
1 | |
| 16 | 78945 |
J-ОБРАЗНЫЙ ФИКСАТОР J CLAMP |
1 | |
| 17 | 4010816 |
ВИНТ Шестигранный фланец (M10 x 16), нержавеющая сталь SCREW (M10 x 16) Hex Flange - Stainless Steel |
1 | |
| 18 | 8M0077562 |
ТРУБА (2440 ММ) Cut to Length TUBE (2440 MM) Cut to Length |
1 | |
| 19 | 8M0046157 |
КРОНШТЕЙН Air Pump BRACKET Air Pump |
1 | |
| 2 | 8M0204681 |
O-RING 1.424 x .103, Special O-RING 1.424 x .103, Special |
1 | |
| 20 | 79968 |
ВИНТ (№12-11 x 0.750) SCREW (#12-11 x .750) |
2 | |
| 21 | 863057 |
НАСОС Air PUMP Air |
1 | |
| 3 | 8M0119211 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | |
| 4 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
1 | |
| 5 | 863467 |
ФИТИНГ Оранжевый Air Valve FITTING Orange Air Valve |
1 | |
| 6 | 863499 |
ФИТИНГ Серый Air Valve FITTING Gray Air Valve |
1 | |
| 7 | 8175051 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
3 | |
| 8 | 8M0095444 |
КРОНШТЕЙН Water Distribution Housing BRACKET Water Distribution Housing |
1 | |
| 9 | 8M0083541 |
ВИНТ (M10 x 16) To Block SCREW (M10 x 16) To Block |
2 |
