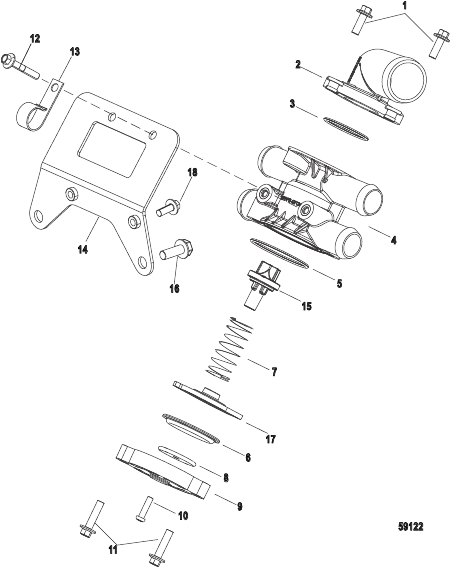

Poppet Valve Assemblies
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0095446 |
КЛАПАН В СБОРЕ Тарельчатый клапан Bravo Raw Water Cooling VALVE ASSEMBLY Poppet Bravo Raw Water Cooling |
1 | |
| - | 8M0095459 |
КЛАПАН В СБОРЕ Тарельчатый клапан Fresh Water Cooling VALVE ASSEMBLY Poppet Fresh Water Cooling |
1 | |
| 1 | 4010618 |
ВИНТ (M6 x 18), нержавеющая сталь SCREW (M6 x 18) Stainless Steel |
2 | |
| 10 | 69570 |
ВИНТ (№10-16 x 0.750) SCREW (#10-16 x .750) |
1 | |
| 11 | 8M0115132 |
ВИНТ (M6) SEMS SCREW (M6) SEMS |
2 | |
| 12 | 4010612 |
ВИНТ (M6 x 12), нержавеющая сталь SCREW (M6 x 12) Stainless Steel |
2 | |
| 13 | 8M0024808 |
УГЛОВОЙ ЗАЖИМ J-CLIP |
2 | |
| 14 | 8M0115431 |
КРОНШТЕЙН BRACKET |
1 | |
| 15 | 888913001 |
ТАРЕЛЬЧАТЫЙ КЛАПАН POPPET |
1 | |
| 16 | 816585 |
ВИНТ (0.312-18 x 0.875) SCREW (.312-18 x .875) |
2 | |
| 17 | 8M0242502 |
PLATE Relief Valve PLATE Relief Valve |
1 | |
| 18 | 4010612 |
ВИНТ (M6 x 12), нержавеющая сталь SCREW (M6 x 12) Stainless Steel |
2 | |
| 2 | 8M2020465 |
ФИТИНГ FITTING Inlet |
1 | |
| 3 | 8M0204681 |
O-RING 1.424 x .103, Special O-RING 1.424 x .103, Special |
1 | |
| 4 | 8M0032643 |
КОРПУС Bravo Raw Water Cooling HOUSING Bravo Raw Water Cooling |
1 | |
| 4 | 8M0089559 |
КОРПУС Fresh Water Cooling HOUSING Fresh Water Cooling |
1 | |
| 5 | 30529 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.925 x 0.103) O-RING (1.925 x .103) |
1 | |
| 6 | 648771 |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 7 | 64878 |
ПРУЖИНА (черный) Bravo Raw Water Cooling SPRING (Black) Bravo Raw Water Cooling |
1 | |
| 7 | 42996 |
ПРУЖИНА (Нержавеющая сталь) Fresh Water Cooling SPRING (Stainless Steel) Fresh Water Cooling |
1 | |
| 8 | 76451 |
ШАЙБА WASHER |
1 | |
| 9 | 8M0036759 |
КРЫШКА COVER Relief Valve |
1 |
