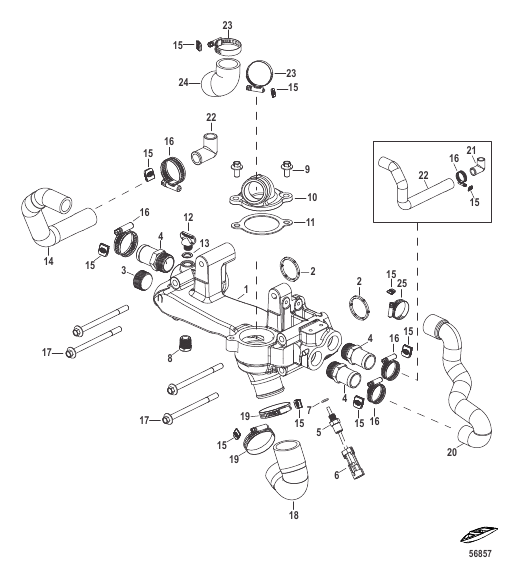

Fresh Water Cooling Crossover Assembly
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0107035 |
ПЕРЕПУСКНАЯ ТРУБА CROSSOVER |
1 | |
| 10 | 8M0078403 |
ПРОБКА CAP |
1 | |
| 11 | 8M0079167 |
ПРОКЛАДКА GASKET |
1 | |
| 12 | 8M0119211 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | |
| 13 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
1 | |
| 14 | 8M0073900 |
РУКАВ Crossover to Starboard Manifold HOSE Crossover to Starboard Manifold |
1 | |
| 15 | 8M0074364 |
ПРОБКА Clamp Cover COVER Hose Clamp Clamp Cover |
AR | |
| 16 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter) |
5 | |
| 17 | 40095110 |
ВИНТ (M8 x 110) SCREW (M8 x 110) |
4 | |
| 18 | 8M2023903 |
РУКАВ Crossover to Circulating Pump HOSE Crossover to Circulating Pump |
1 | |
| 19 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter) |
2 | |
| 2 | 8M0081836 |
УПЛОТНЕНИЕ SEAL |
2 | |
| 20 | 8M0088736 |
РУКАВ Crossover to Thermostat Housing HOSE Crossover to Thermostat Housing |
1 | |
| 21 | 36305T |
КОЛЕНЧАТЫЙ 90 Degrees ELBOW 90 Degrees |
2 | |
| 22 | 8M0094253 |
РУКАВ Crossover to Port Manifold HOSE Crossover to Port Manifold |
1 | |
| 23 | 815504224 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 24 | 8M0078831 |
РУКАВ Exchanger to Crossover HOSE Exchanger to Crossover |
1 | |
| 25 | 8M0188622 |
HOSE CLAMP HOSE CLAMP |
1 | |
| 3 | 8M0204679 |
FITTING Pipe - Brass (.750-14) FITTING Pipe - Brass (.750-14) |
1 | |
| 4 | 866725 |
ФИТИНГ Прямой (0.750-14) FITTING Straight (.750-14) |
3 | |
| 5 | 8M0148668 |
SENSOR ASSEMBLY Temperature SENSOR ASSEMBLY Temperature |
1 | |
| 6 | 830796A1 |
СОЕДИНИТЕЛЬ В СБОРЕ CONNECTOR ASSEMBLY |
1 | |
| 7 | 896699 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.78 мм x 0.08 мм) O-RING (1.78 mm x .08 mm) |
1 | |
| 8 | 8M0180565 |
PLUG PLUG |
1 | |
| 9 | 8M0153661 |
SCREW (M8 x 16) SCREW (M8 x 16) |
2 |
