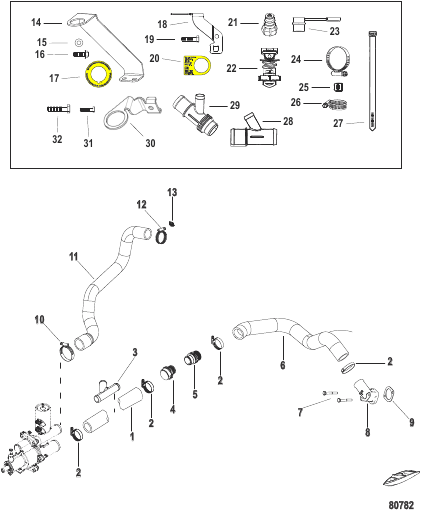

Raw Water Cooling (Bravo) Sea Pump Hoses
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0062666 |
РУКАВ (Общая длина 96.00") Cut to Length HOSE (96.00 Inches Bulk) Cut to Length |
1 | |
| 10 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 11 | 8M2023904 |
РУКАВ Sea Pump to PS Cooler HOSE Sea Pump to PS Cooler |
1 | |
| 12 | 815504220 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 13 | 8M0074364 |
ПРОБКА COVER Hose Clamp |
1 | |
| 14 | 8M2021334 |
КРОНШТЕЙН 4.3L ECT BRACKET 4.3L ECT |
2 | |
| 15 | 8M0204690 |
WASHER (.344 x .688 x .065) Stainless Steel WASHER (.344 x .688 x .065) Stainless Steel |
3 | |
| 16 | 28782 |
ВИНТ (0.312-18 x 0.880), нержавеющая сталь SCREW (.312-18 x .880) Stainless Steel |
1 | |
| 17 | 8M2017894 |
НАКЛЕЙКА Промывочное отверстие 4.3L ECT DECAL Flush Port 4.3L ECT |
1 | |
| 18 | 8M0095462 |
КРОНШТЕЙН 4.5L and 6.2L BRACKET 4.5L and 6.2L |
1 | |
| 19 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
1 | |
| 2 | 8M0188622 |
HOSE CLAMP HOSE CLAMP |
AR | |
| 20 | 8M0085350 |
DECAL 4.5L and 6.2L DECAL 4.5L and 6.2L |
1 | |
| 21 | 857175 |
СОЕДИНИТЕЛЬНАЯ ВСТАВКА COUPLING INSERT |
1 | |
| 22 | 861406 |
ГНЕЗДО Quick-connect SOCKET Quick-connect |
1 | |
| 23 | 858240 |
ПРОБКА CAP Tethered |
1 | |
| 24 | 8M0230751 |
CLAMP HOSE CLAMP HOSE |
3 | |
| 25 | 8M0074364 |
ПРОБКА Clamp Cover COVER Hose Clamp Clamp Cover |
5 | |
| 26 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 27 | 77054 |
ЛЕНТОЧНЫЙ ХОМУТ (14.50") TIE STRAP (14.50 Inches) |
1 | |
| 28 | 862993 |
ФИТИНГ Y, (2) 1-1/4" Ниппели шлангов / (1) 3/4" Ниппель шланга FITTING Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb |
1 | |
| 29 | 8M4501756 |
ФИТИНГ Y-FITTING |
1 | |
| 3 | 864727 |
ФИТИНГ Y, (3) 1-1/4" Н.Д. ниппелей шлангов Dual Drain Applications FITTING Y, (3) 1-1/4 In. OD Hose Barbs Dual Drain Applications |
AR | |
| 30 | 8M0104887 |
BRACKET Flush Valve BRACKET Flush Valve |
1 | |
| 31 | 88552612 |
ВИНТ (M8 x 12) SCREW (M8 x 12) |
1 | |
| 32 | 88552620 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
1 | |
| 4 | 865362 |
БЫСТРОРАЗЪЕМНЫЙ Replace if Adding Flush Kit QUICK CONNECT Replace if Adding Flush Kit |
1 | |
| 5 | 865324 |
БЫСТРОРАЗЪЕМНЫЙ QUICK CONNECT |
2 | |
| 6 | 8M0109511 |
РУКАВ Water HOSE Water |
1 | |
| 7 | 73015 |
ВИНТ (0.250-20 x 1.75) SCREW (.250-20 x 1.75) |
2 | |
| 8 | 8M0114793 |
КОРПУС Впуск Blue HOUSING Inlet Blue |
1 | |
| 9 | 8M0109475 |
ПРОКЛАДКА Hose Connector GASKET Hose Connector |
1 | |
| NS | 8M0123083 |
КОМПЛЕКТ ДЛЯ ПРОМЫВКИ FLUSH KIT |
AR | |
| NS | 8M0062635 |
РУКАВ Общая длина 42.00" Cut to length HOSE 42.00 inch Bulk Cut to length |
1 |
