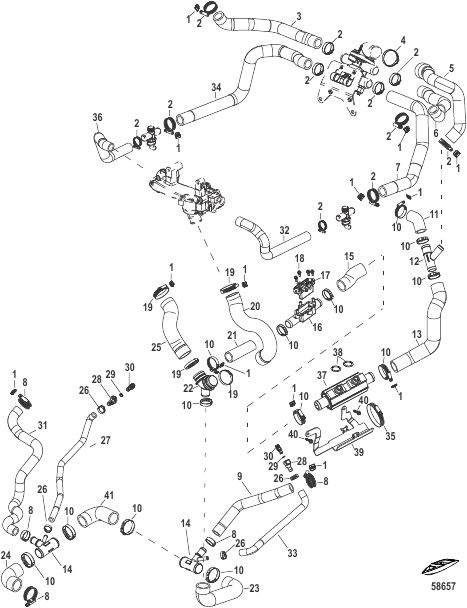

Raw Water Cooling Cooling Hoses

Parts (41)

#	Part Number	Description	Qty
1	8M0074364	COVER Hose Clamp	AR
10	8M0188622	HOSE CLAMP	10
11	8M0116960	HOSE Steering Cooler to Y Fitting	1
12	8M2003728	Y-FITTING	1
13	8M0099539	HOSE Y Fitting to Drain Fitting	1
14	8M0088893	FITTING Drain	2
15	8M0099294	HOSE Drain Fitting to Strainer	1
16	8M0095457	STRAINER ASSEMBLY	1
17	8M0097249	COVER	1
18	8M0086279	SCREW (M6)	4
19	815504232	CLAMP Worm Gear (2.50 Diameter)	4
2	815504216	CLAMP Worm Gear (1.56 Diameter)	9
20	8M0117029	HOSE Y Fitting to Crossover	1
21	8M0087038	HOSE Strainer to Distribution Housing	1
22	8M0107045	FITTING Y	1
23	8M0098992	HOSE Drain Fitting to Y Fitting	1
24	8M0080675	HOSE Distribution Housing to Drain Fitting	1
25	8M0117030	HOSE Y Fitting to Circulation Pump	1
26	815504210	CLAMP Worm Gear	4
27	8M0035079	HOSE Starboard Block Drain	1
28	862225	FITTING	2
29	627021	O-RING (.301 x .070)	2
3	8M0099692	HOSE Connects to Upper Poppet Valve	1
30	8M0180470	FITTING	2
31	8M0118724	HOSE Exhaust Manifold to Drain Fitting	1
32	8M0098457	HOSE Crossover to Port Manifold	1
33	8M0099107	HOSE Port Block Drain	1
34	8M0099900	HOSE Connects to Poppet Valve; Starboard Bottom	1
35	815504244	CLAMP Worm Gear Cooler	1
36	8M0118130	HOSE Crossover to Manifold	1
37	8M0107033	OIL COOLER	1
38	8M2001117	O-RING (.489 X .070)	2
39	8M0105201	BRACKET	1
4	815504232	CLAMP Worm Gear (2.50 Diameter)	1
40	8M0152074	SCREW (M6 x 1)	2
41	8M0098984	HOSE Drain Fitting to Drain Fitting	1
5	8M2023916	HOSE Y Fitting to Poppet Valve Cover	1
6	8M0100541	HOSE Connects to Upper Poppet Valve	1
7	8M0038313	HOSE Connects to Lower Poppet Valve	1
8	815504212	CLAMP Worm Gear	5
9	8M0099109	HOSE Port Manifold Drain	1
