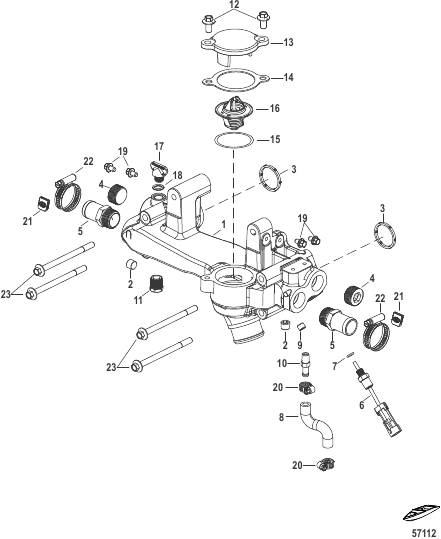

Raw Water Cooling Crossover Assembly
Parts (23)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0107034 |
ПЕРЕПУСКНАЯ ТРУБА CROSSOVER |
1 | |
| 10 | 8M0085864 |
ФИТИНГ FITTING |
1 | |
| 11 | 8M0180565 |
PLUG PLUG |
1 | |
| 12 | 8M0153661 |
SCREW (M8 x 16) SCREW (M8 x 16) |
2 | |
| 13 | 8M0073879 |
ПРОБКА CAP |
1 | |
| 14 | 8M0079167 |
ПРОКЛАДКА Crossover Cap GASKET Crossover Cap |
1 | |
| 15 | 8M0238323 |
GASKET Thermostat GASKET Thermostat |
1 | |
| 16 | 8M0089715 |
ТЕРМОСТАТ 60 °C (140 °F) THERMOSTAT 60 Degree C (140 Degree F) |
1 | |
| 17 | 8M0119211 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | |
| 18 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
1 | |
| 19 | 8M2600010 |
ВИНТ (M6x10) RWC Cover Bracket SCREW (M6x10) RWC Cover Bracket |
4 | |
| 2 | 8M0180564 |
PLUG (.250-18) PLUG (.250-18) |
2 | |
| 20 | 8M0188618 |
CLAMP Worm Gear (11-18 mm) CLAMP Worm Gear (11-18 mm) |
2 | |
| 21 | 8M0074364 |
ПРОБКА COVER Hose Clamp |
AR | |
| 22 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter) |
4 | |
| 23 | 40095110 |
ВИНТ (M8 x 110) SCREW (M8 x 110) |
4 | |
| 3 | 8M0081836 |
УПЛОТНЕНИЕ SEAL |
2 | |
| 4 | 8M0204679 |
FITTING Pipe - Brass (.750-14) FITTING Pipe - Brass (.750-14) |
2 | |
| 5 | 866725 |
ФИТИНГ Прямой (0.750-14) FITTING Straight (.750-14) |
2 | |
| 6 | 8M0148668 |
SENSOR ASSEMBLY Temperature SENSOR ASSEMBLY Temperature |
1 | |
| 7 | 896699 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.78 мм x 0.08 мм) O-RING (1.78 mm x .08 mm) |
1 | |
| 8 | 8M0090430 |
РУКАВ FSM to Crossover HOSE FSM to Crossover |
1 | |
| 9 | 390721 |
ПРОБКА Труба (0.125-27), латунь PLUG Pipe (.125-27) Brass |
1 |
