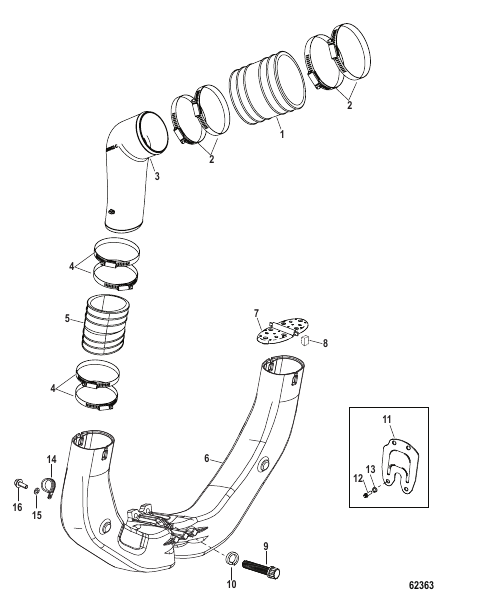

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0199680 |
EXHAUST TUBE
|
2 |
|
| 10 |
41471 |
LOCKWASHER (.375)
|
4 |
|
| 11 |
861776A2 |
PLATE KIT Through Transom Exhaust
|
1 |
|
| 12 |
8M0113180 |
SCREW (.375-16 x 1.00) Through Transom Exhaust
|
4 |
|
| 13 |
41471 |
LOCKWASHER (.375) Through Transom Exhaust
|
4 |
|
| 14 |
8M0114196 |
CLIP
|
1 |
|
| 15 |
35044 |
WASHER (.281 x .625 x .065) Stainless Steel
|
1 |
|
| 16 |
4010816 |
SCREW (M10 x 16) Hex Flange - Stainless Steel
|
1 |
|
| 2 |
815504272 |
CLAMP Worm Gear
|
8 |
|
| 3 |
879288A34 |
ELBOW KIT Intermediate Non Riser
|
1 |
|
| 3 |
879288A35 |
ELBOW KIT Intermediate 2 Inch Riser
|
1 |
|
| 3 |
879288A36 |
ELBOW KIT Intermediate 4 Inch Riser
|
1 |
|
| 3 |
879288A37 |
ELBOW KIT Intermediate 6 Inch Riser
|
1 |
|
| 3 |
879288A38 |
ELBOW KIT Intermediate 8 Inch Riser
|
1 |
|
| 4 |
815504272 |
CLAMP Worm Gear
|
8 |
|
| 5 |
8M0199680 |
EXHAUST TUBE
|
2 |
|
| 6 |
8M0115149 |
PIPE Exhaust
|
1 |
|
| 7 |
807166A1 |
SHUTTER ASSEMBLY Water
|
2 |
|
| 8 |
8M0204688 |
GROMMET
|
4 |
|
| 9 |
8M0113174 |
SCREW (.375-16 x 1.25)
|
4 |
|
