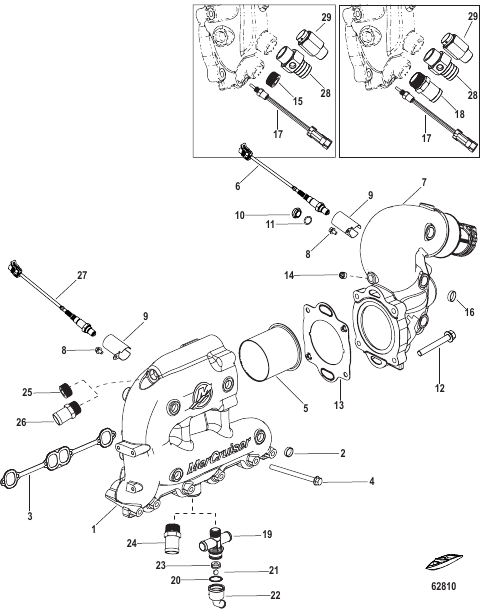

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0103774 |
MANIFOLD ASSEMBLY Exhaust Port
|
1 |
|
| 1 |
8M0103773 |
MANIFOLD ASSEMBLY Exhaust Starboard
|
1 |
|
| 10 |
8M0082363 |
PLUG Included in Elbow Assemblies Non-Catalyzed
|
2 |
|
| 11 |
8M0097283 |
WASHER Copper Included in Elbow Assemblies Non-Catalyzed
|
2 |
|
| 12 |
668631 |
SCREW (.375-16 x 2.500)
|
4 |
|
| 13 |
8M2004606 |
GASKET (Closed Cooling)
|
2 |
|
| 13 |
8M2004414 |
GASKET Included in Elbow Assemblies (Standard Cooling)
|
2 |
|
| 14 |
73379 |
PLUG (.250-18)
|
AR |
superseded
|
| 15 |
428611 |
FITTING Pipe - Brass (.750-14) Included in Elbow Assemblies (Standard Cooling)
|
2 |
superseded
|
| 16 |
864689 |
PLUG Expansion Included in Elbow Assemblies
|
4 |
|
| 17 |
885342002 |
SENSOR ASSEMBLY Temperature
|
2 |
superseded
|
| 18 |
866725 |
FITTING Straight (.750-14) (Closed Cooling)
|
2 |
|
| 19 |
8M0095953 |
FITTING ASSEMBLY (Standard Cooling)
|
2 |
superseded
|
| 2 |
864689 |
PLUG Expansion
|
10 |
|
| 20 |
864701 |
O-RING (1.112 x .103) (Standard Cooling)
|
1 |
|
| 21 |
863129 |
BALL (Standard Cooling)
|
1 |
|
| 22 |
862994T |
FITTING (Standard Cooling)
|
1 |
|
| 23 |
8M0059679 |
BALL SEAT Rubber (Standard Cooling)
|
2 |
|
| 24 |
866725 |
FITTING Straight (.750-14) (Closed Cooling)
|
2 |
|
| 25 |
428611 |
FITTING Pipe - Brass (.750-14) (Standard Cooling)
|
2 |
superseded
|
| 26 |
866725 |
FITTING Straight (.750-14) (Closed Cooling)
|
2 |
|
| 27 |
8M0095468 |
SENSOR O2
|
2 |
superseded
|
| 28 |
864623 |
FITTING
|
2 |
|
| 29 |
8M0103408 |
CHECK VALVE
|
2 |
|
| 3 |
8M2000819 |
GASKET
|
2 |
|
| 4 |
8M2000229 |
SCREW (.375-16 x 4.75)
|
12 |
superseded
|
| 5 |
8M0104918 |
CATALYST Catalyzed
|
2 |
superseded
|
| 6 |
8M2003959 |
SENSOR Oxygen Catalyzed [2A530776] THRU [2A684231]
|
2 |
|
| 6 |
8M0175736 |
SENSOR Oxygen See 2020-06 TSP Bulletin [2A684232] & Up
|
2 |
|
| 7 |
8M0104207 |
ELBOW ASSEMBLY No Rise Port
|
1 |
superseded
|
| 7 |
8M0104208 |
ELBOW ASSEMBLY No Rise Starboard
|
1 |
superseded
|
| 7 |
8M0104209 |
ELBOW ASSEMBLY 2 Inch Riser (Includes Port & Starboard)
|
1 |
superseded
|
| 7 |
8M0104210 |
ELBOW ASSEMBLY 4 Inch Riser (Includes Port & Starboard)
|
1 |
superseded
|
| 7 |
8M0104211 |
ELBOW ASSEMBLY 6 Inch Riser (Includes Port & Starboard)
|
1 |
superseded
|
| 8 |
8M2007128 |
SCREW (1/4-20) Hex Flange Included in 6 Inch Elbow Assembly 6 Inch Catalyzed
|
4 |
|
| 8 |
8M2007128 |
SCREW (1/4-20) Hex Flange Included in 6 Inch Elbow Assembly 6 Inch Non-Catalyzed
|
2 |
|
| 9 |
8M2004597 |
BRACKET Cover Included in 6 Inch Elbow Assembly 6 Inch Catalyzed
|
4 |
|
| 9 |
8M2004597 |
BRACKET Cover Included in 6 Inch Elbow Assembly 6 Inch Non-Catalyzed
|
2 |
|
