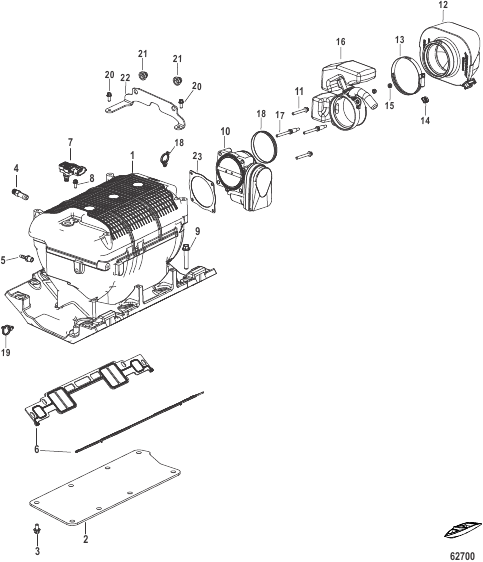

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0107038 |
INTAKE MANIFOLD
|
1 |
|
| 10 |
8M0222358 |
THROTTLE BODY 80 MM
|
1 |
|
| 11 |
88552550 |
SCREW (M6 x 50 MM) Stainless Steel
|
2 |
|
| 12 |
8M0113519 |
FLAME ARRESTOR KIT With Clamp and Clamp Cover
|
1 |
|
| 13 |
8M0103048 |
CLAMP
|
1 |
|
| 14 |
8M0074364 |
COVER Hose Clamp Clamp Cover
|
1 |
|
| 15 |
8M0045046 |
NUT (M6) Stainless Steel
|
2 |
|
| 16 |
8M0114817 |
RESONATOR
|
1 |
|
| 17 |
8M0109400 |
STUD
|
2 |
|
| 18 |
866232 |
SEAL
|
1 |
|
| 19 |
899145 |
CLIP Tie Strap
|
2 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Shield
|
1 |
|
| 20 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
2 |
|
| 21 |
8M0096302 |
GROMMET
|
2 |
|
| 22 |
8M0104935 |
BRACKET Intake Cover
|
1 |
|
| 23 |
8M0109442 |
GASKET Throttle Body
|
1 |
|
| 3 |
8M0103804 |
SCREW (M6 x 12 MM) Stainless Steel
|
8 |
|
| 4 |
897722 |
FITTING Straight Crankcase Vent Valve (PCV)
|
1 |
|
| 5 |
859092 |
FITTING To Fuel Regulator
|
1 |
|
| 6 |
8M0157630 |
GASKET Intake Manifold
|
2 |
|
| 7 |
8M6002029 |
SENSOR Intake Manifold Temperature/Pressure
|
1 |
|
| 8 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
1 |
|
| 9 |
88552645 |
SCREW (M8X45)
|
8 |
|
