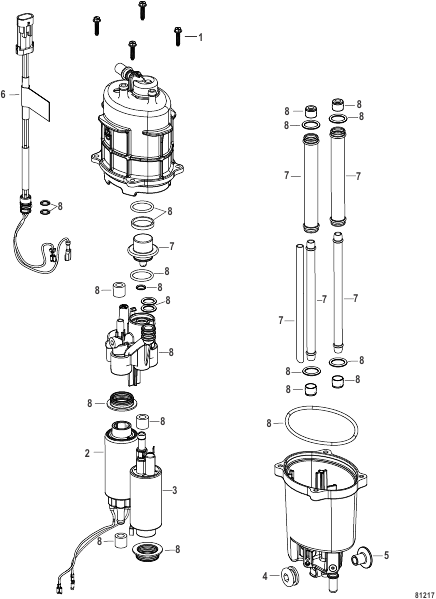

Fuel Supply Module Components 8M0235171 - 2A920729 and Up
Parts (9)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0235171 |
FUEL SUPPLY MODULE Dual Pump FUEL SUPPLY MODULE Dual Pump |
1 | |
| 1 | 8M0053756 |
ВИНТ Plastite с HX WSR HD SCREW Plastite W/ HX WSR HD |
4 | |
| 2 | 8M0245916 |
PUMP ASSEMBLY High Pressure PUMP ASSEMBLY High Pressure |
1 | |
| 3 | 8M0245917 |
PUMP ASSEMBLY Low Pressure PUMP ASSEMBLY Low Pressure |
1 | |
| 4 | 895319 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 5 | 856954 |
ВТУЛКА BUSHING |
1 | |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Harness, Pass Thru NOT SOLD SEPARATE Harness, Pass Thru |
1 | |
| 7 | 8M0245915 |
FSM REPAIR KIT FSM REPAIR KIT |
1 | |
| 8 | 8M0133370 |
КОМПЛЕКТ УПЛОТНИТЕЛЕЙ FSM FSM SEAL KIT |
1 |
