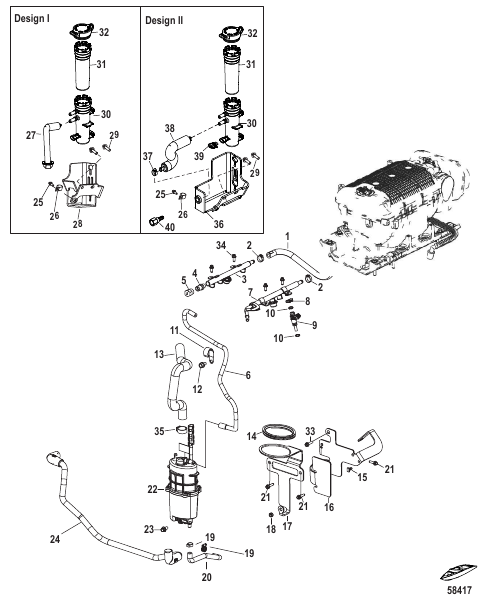

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0105309 |
HOSE Balance
|
1 |
|
| 10 |
879150A09 |
SEAL KIT
|
2 |
|
| 11 |
97224 |
J CLIP
|
1 |
|
| 12 |
81893414 |
SCREW (M8 x 14)
|
1 |
|
| 13 |
8M0110657 |
HOSE Fuel Supply Module to Fuel Rail
|
1 |
|
| 14 |
8M0037209 |
GROMMET FSM Retainer
|
1 |
|
| 15 |
879962 |
CLIP
|
1 |
|
| 16 |
8M0102904 |
BRACKET
|
1 |
|
| 17 |
8M0104920 |
BRACKET
|
1 |
|
| 18 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
1 |
|
| 19 |
815504105 |
CLAMP Worm Gear (11-18 mm)
|
2 |
superseded
|
| 2 |
8M6002226 |
CLAMP
|
2 |
|
| 20 |
8M0087404 |
HOSE Fuel Module to Water Strainer
|
1 |
|
| 21 |
88552616 |
SCREW (M8 x 16)
|
3 |
|
| 22 |
8M0121387 |
FUEL SUPPLY MODULE Dual Pump
|
1 |
superseded
|
| 23 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
1 |
|
| 24 |
8M0043463 |
LINE ASSEMBLY Fuel Filter to Fuel Module
|
1 |
superseded
|
| 25 |
88552514 |
SCREW (M6 x 14 MM) Stainless Steel
|
1 |
|
| 26 |
633001 |
CLAMP
|
1 |
disc.
|
| 27 |
8M0088717 |
HOSE ASSEMBLY To Fuel Tank [2A530778] THRU [2A578472]
|
1 |
|
| 28 |
8M0109593 |
BRACKET [2A530778] THRU [2A578472]
|
1 |
|
| 29 |
4010725 |
SCREW (M8 x 25)
|
2 |
|
| 3 |
8M0085006 |
FUEL RAIL Starboard With Spacer
|
1 |
|
| 30 |
8M0062950 |
FILTER ASSEMBLY
|
1 |
|
| 31 |
8M0060041 |
FILTER Fuel
|
1 |
superseded
|
| 32 |
8M0086839 |
CAP
|
1 |
|
| 33 |
8M0083541 |
SCREW (M10 x 16)
|
1 |
|
| 34 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
4 |
|
| 35 |
855697 |
CLAMP
|
2 |
superseded
|
| 36 |
8M0146601 |
BRACKET ASSEMBLY [2A578367] & Up
|
1 |
|
| 37 |
877617 |
CLAMP [2A578367] & Up
|
1 |
superseded
|
| 38 |
8M0137059 |
HOSE ASSEMBLY [2A578367] & Up
|
1 |
|
| 39 |
830797A01 |
CONNECTOR ASSEMBLY Weather Cap - 2 Pin Female [2A578367] & Up
|
1 |
|
| 4 |
8M0044726 |
VALVE ASSEMBLY
|
1 |
|
| 40 |
8M0126648 |
FITTING [2A578367] & Up
|
1 |
|
| 5 |
8M0046566 |
CAP Valve
|
1 |
|
| 6 |
8M0117379 |
HOSE Fuel Regulator to Induction Plenum
|
1 |
|
| 7 |
8M0085005 |
FUEL RAIL Port
|
1 |
|
| 8 |
8M2001570 |
CLIP
|
3 |
|
| 9 |
8M6002428 |
FUEL INJECTOR
|
8 |
superseded
|
| NS |
8M0107935 |
SPACER Injector Orientation For Number 8 Injector [2A505293] & Below
|
1 |
|
