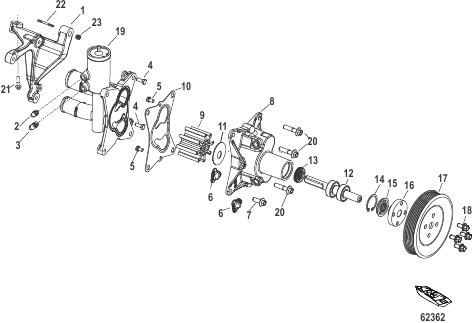

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0122666 |
SEA PUMP KIT
|
1 |
|
| - |
8M0122667 |
SEA PUMP ASSEMBLY Sea Water Sea Pump Only
|
1 |
|
| 1 |
8M0075090 |
BRACKET
|
1 |
|
| 10 |
8M0114788 |
SEAL Wear Plate
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Wear Plate
|
1 |
|
| 12 |
8M0050018 |
DRIVESHAFT ASSEMBLY KIT
|
1 |
superseded
|
| 12 |
8M2001645 |
SEAL
|
1 |
superseded
|
| 13 |
NSS |
NOT SOLD SEPARATE Drive Shaft
|
1 |
|
| 14 |
NSS |
NOT SOLD SEPARATE Snap Ring
|
1 |
|
| 15 |
862040 |
SEAL
|
1 |
|
| 16 |
8M0109086 |
HUB
|
1 |
|
| 17 |
8M0074941 |
PULLEY
|
1 |
superseded
|
| 18 |
88552616 |
SCREW (M8 x 16)
|
4 |
|
| 19 |
8M0122664 |
COVER ASSEMBLY Sea Pump
|
1 |
|
| 2 |
8M0082321 |
FITTING (90 Degree)
|
1 |
|
| 20 |
4010735 |
SCREW (M8 x 35)
|
3 |
|
| 21 |
892086035 |
SCREW (M10 x 35)
|
1 |
|
| 22 |
8M0097732 |
STUD (M10x1.5x55)
|
1 |
superseded
|
| 23 |
8M0090535 |
NUT (M10 Flange)
|
1 |
superseded
|
| 3 |
8M0082322 |
FITTING Orange (90 Degree)
|
1 |
|
| 4 |
4000328 |
SCREW (M6 x 16)
|
2 |
superseded
|
| 5 |
4000325 |
SCREW (M6 x 8)
|
2 |
|
| 6 |
8M0119211 |
PLUG ASSEMBLY (.500-13) Blue
|
2 |
|
| 7 |
4010720 |
SCREW (M8 x 20)
|
1 |
|
| 8 |
8M0122665 |
IMPELLER HOUSING ASSEMBLY
|
1 |
superseded
|
| 9 |
8M0121940 |
IMPELLER KIT Heavy Duty
|
1 |
superseded
|
