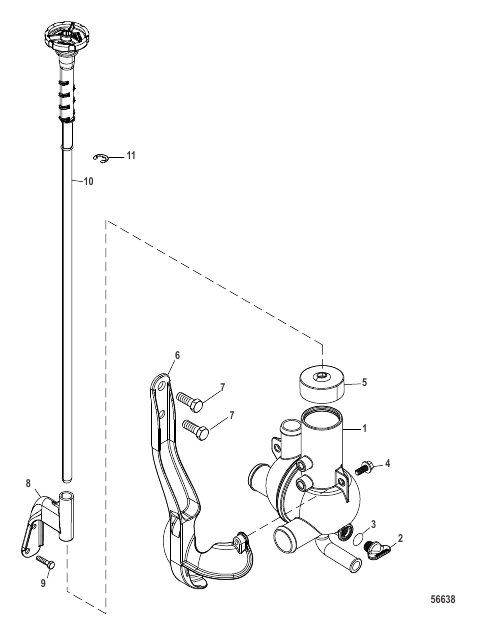

Water Distribution Housing Rod Actuated
Parts (11)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0101224 |
КОРПУС Водораспределение HOUSING Water Distribution |
1 | |
| 10 | 8M0097762 |
СТЕРЖЕНЬ ДЛЯ ПРОЧИСТКИ В СБОРЕ DRAIN ROD ASSEMBLY |
1 | |
| 11 | 863741 |
E-ОБРАЗНОЕ КОЛЬЦО E-RING |
1 | |
| 2 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | superseded |
| 3 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
1 | |
| 4 | 8175051 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
3 | |
| 5 | 863839 |
КРЫШКА COVER |
1 | |
| 6 | 8M0095444 |
КРОНШТЕЙН Water Distribution Housing BRACKET Water Distribution Housing |
1 | |
| 7 | 8M0083541 |
ВИНТ (M10 x 16) To Block SCREW (M10 x 16) To Block |
2 | |
| 8 | 8M0079961 |
КРОНШТЕЙН Water Drain Actuator BRACKET Water Drain Actuator |
1 | |
| 9 | 8M2600010 |
ВИНТ (M6x10) SCREW (M6x10) |
2 |
