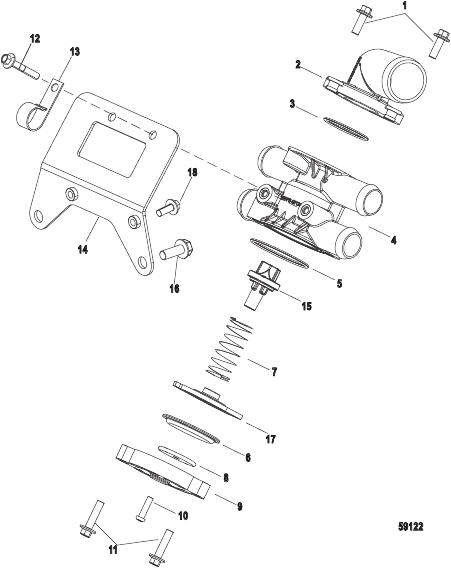

Poppet Valve Assemblies
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0095445 |
КЛАПАН В СБОРЕ Тарельчатый клапан Alpha Raw Water Cooling VALVE ASSEMBLY Poppet Alpha Raw Water Cooling |
1 | |
| - | 8M0095446 |
КЛАПАН В СБОРЕ Тарельчатый клапан Bravo Fresh Water Cooling VALVE ASSEMBLY Poppet Bravo Fresh Water Cooling |
1 | |
| - | 8M0095459 |
КЛАПАН В СБОРЕ Тарельчатый клапан Fresh Water Cooling VALVE ASSEMBLY Poppet Fresh Water Cooling |
1 | |
| 1 | 4010618 |
ВИНТ (M6 x 18), нержавеющая сталь SCREW (M6 x 18) Stainless Steel |
2 | |
| 10 | 69570 |
ВИНТ (№10-16 x 0.750) SCREW (#10-16 x .750) |
1 | |
| 11 | 82130025 |
ВИНТ (M6 x 25) Alpha Raw Water Cooling SCREW (M6 x 25) Alpha Raw Water Cooling |
2 | |
| 11 | 8M0115132 |
ВИНТ (M6) SEMS SCREW (M6) SEMS |
2 | |
| 12 | 4010612 |
ВИНТ (M6 x 12), нержавеющая сталь SCREW (M6 x 12) Stainless Steel |
2 | |
| 13 | 65292 |
J-ЗАЖИМ J CLIP |
2 | superseded |
| 14 | 8M0081140 |
КРОНШТЕЙН Alpha Raw Water Cooling BRACKET Alpha Raw Water Cooling |
1 | |
| 14 | 8M0115431 |
КРОНШТЕЙН BRACKET |
1 | |
| 15 | 888913001 |
ТАРЕЛЬЧАТЫЙ КЛАПАН POPPET |
1 | |
| 16 | 816585 |
ВИНТ (0.312-18 x 0.875) SCREW (.312-18 x .875) |
2 | |
| 17 | 8M0091668 |
ПЛАСТИНА Выпускной клапан PLATE Relief Valve |
1 | |
| 18 | 4010612 |
ВИНТ (M6 x 12), нержавеющая сталь SCREW (M6 x 12) Stainless Steel |
2 | |
| 2 | 8M2020465 |
ФИТИНГ FITTING Inlet |
1 | |
| 3 | 457101 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.424 x 0.103) O-RING (1.424 x .103) |
1 | superseded |
| 4 | 8M0032206 |
КОРПУС Alpha Raw Water Cooling HOUSING Alpha Raw Water Cooling |
1 | |
| 4 | 8M0032643 |
КОРПУС Bravo Fresh Water Cooling HOUSING Bravo Fresh Water Cooling |
1 | |
| 4 | 8M0089559 |
КОРПУС Fresh Water Cooling HOUSING Fresh Water Cooling |
1 | |
| 5 | 30529 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.925 x 0.103) O-RING (1.925 x .103) |
1 | |
| 6 | 648771 |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 7 | 90392 |
ПРУЖИНА Alpha Raw Water Cooling SPRING Alpha Raw Water Cooling |
1 | |
| 7 | 64878 |
ПРУЖИНА (черный) Bravo Fresh Water Cooling SPRING (Black) Bravo Fresh Water Cooling |
1 | |
| 7 | 42996 |
ПРУЖИНА (Нержавеющая сталь) Fresh Water Cooling SPRING (Stainless Steel) Fresh Water Cooling |
1 | |
| 8 | 76451 |
ШАЙБА WASHER |
1 | |
| 9 | 8M0036759 |
КРЫШКА COVER Relief Valve |
1 |
