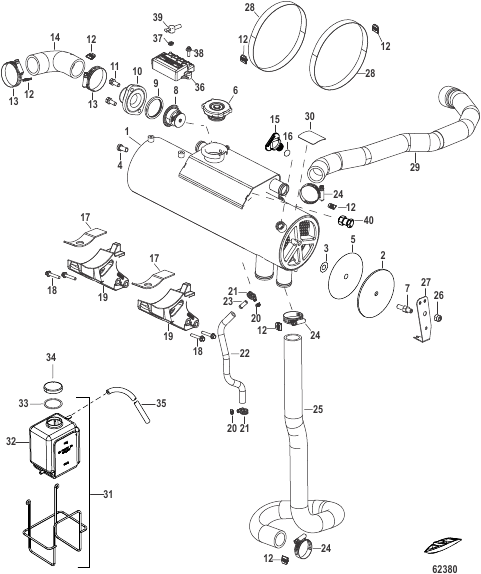

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0114809 |
HEAT EXCHANGER ASSEMBLY
|
1 |
superseded
|
| 10 |
807075A1 |
COVER Thermostat
|
1 |
|
| 11 |
29198 |
SCREW AND LOCKWASHER (.312-18 x .875)
|
2 |
|
| 12 |
8M0074364 |
COVER Hose Clamp
|
AR |
|
| 13 |
815504228 |
CLAMP Worm Gear
|
2 |
|
| 14 |
8M0088806 |
HOSE Thermostat to Exchanger
|
1 |
|
| 15 |
806608A02 |
PLUG ASSEMBLY (.500-13) Blue
|
1 |
superseded
|
| 16 |
26802 |
O-RING (.424 x .103)
|
1 |
|
| 17 |
8M0109343 |
PAD Heat Exchanger
|
2 |
|
| 18 |
8M0107994 |
SCREW M8 Hex Flange
|
4 |
superseded
|
| 19 |
8M0114796 |
BRACKET Heat Exchanger
|
2 |
|
| 2 |
864708 |
COVER End Cap
|
2 |
|
| 20 |
8M0074363 |
CAP
|
2 |
|
| 21 |
815504105 |
CLAMP Worm Gear (11-18 mm)
|
2 |
superseded
|
| 22 |
8M0086594 |
HOSE Fuel Module to Heat Exchanger
|
1 |
|
| 23 |
8M0085864 |
FITTING
|
1 |
|
| 24 |
815504222 |
CLAMP Worm Gear (1.98 DIameter)
|
3 |
superseded
|
| 25 |
8M0085910 |
HOSE Distribution Housing to Heat Exchanger
|
1 |
|
| 26 |
82670912 |
NUT (.375-16) Stainless Steel
|
1 |
|
| 27 |
8M0081037 |
BRACKET Air Actuator
|
1 |
|
| 28 |
8M0109309 |
CLAMP Heat Exchanger
|
2 |
|
| 29 |
8M0094644 |
HOSE Exchanger to Poppet Valve
|
1 |
|
| 3 |
8M0039163 |
O-RING (3/8 x 1/8)
|
4 |
|
| 30 |
8M0095464 |
DECAL SET Drain, Maintenace, and Specifications
|
1 |
|
| 31 |
71587A10 |
RECOVERY KIT Coolant
|
1 |
|
| 32 |
71587A11 |
BOTTLE Plastic
|
1 |
|
| 33 |
72058 |
CAP Bottle
|
1 |
|
| 34 |
1983389 |
HOSE
|
1 |
|
| 35 |
8M0100517 |
MERCATHODE CONTROLLER MerCathode
|
1 |
|
| 36 |
68219 |
NUT (#10-32) Stainless Steel
|
4 |
|
| 37 |
82104520 |
SCREW (M5 x 20)
|
2 |
|
| 38 |
86606 |
BOOT Insulator - Black
|
4 |
|
| 39 |
818390 |
DRAIN COCK
|
1 |
|
| 4 |
94247 |
SCREW (.375-16 x .750) Stainless Steel
|
1 |
|
| 5 |
8M0084884 |
SEAL Flat
|
2 |
|
| 6 |
8148791 |
CAP Pressure
|
1 |
|
| 7 |
8M0029252 |
STUD HEX HD 3/8-16
|
1 |
|
| 8 |
864493 |
THERMOSTAT 77°C (170°F)
|
1 |
|
| 9 |
8071341 |
SEAL Thermostat
|
1 |
|
| NS |
8M0096310 |
HARNESS Mercathode 3 Wire
|
1 |
|
