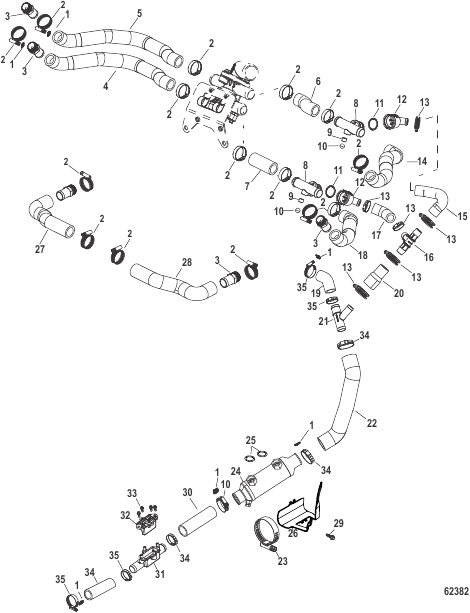

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0074364 |
COVER Hose Clamp
|
AR |
|
| 10 |
863129 |
BALL
|
2 |
|
| 11 |
864701 |
O-RING (1.112 x .103)
|
2 |
|
| 12 |
862994T |
FITTING
|
2 |
|
| 13 |
815504212 |
CLAMP Worm Gear
|
4 |
|
| 14 |
8M0100540 |
HOSE T Fitting to Elbow
|
1 |
|
| 15 |
8M2023910 |
HOSE Upper Drain Fitting to T Fitting
|
1 |
|
| 16 |
863464 |
FITTING
|
1 |
|
| 17 |
8M2023911 |
HOSE Low Drain to T Fitting
|
1 |
|
| 18 |
8M2023907 |
HOSE T Drain to Lower Elbow
|
1 |
|
| 19 |
8M0082286 |
HOSE Steering Cooler to Y Fitting
|
1 |
superseded
|
| 2 |
815504216 |
CLAMP Worm Gear (1.56 Diameter)
|
12 |
|
| 20 |
8M2023912 |
HOSE Y Fitting to T Fitting
|
1 |
|
| 21 |
8M2003728 |
Y-FITTING
|
1 |
|
| 22 |
8M0113892 |
HOSE Y Fitting to Cooler
|
1 |
|
| 23 |
815504244 |
CLAMP Worm Gear
|
1 |
|
| 24 |
8M0107033 |
OIL COOLER
|
1 |
|
| 25 |
8M2001117 |
O-RING (.489 X .070)
|
2 |
|
| 26 |
8M0114801 |
BRACKET
|
1 |
|
| 27 |
8M0114510 |
HOSE Manifold to Heat Exchanger
|
1 |
|
| 28 |
8M0114507 |
HOSE Manifold to Heat Exchanger
|
1 |
|
| 29 |
8M0082256 |
SCREW (M6 x 1)
|
2 |
superseded
|
| 3 |
866725 |
FITTING Straight (.750-14)
|
4 |
|
| 30 |
8M0089002 |
HOSE Cooler to Strainer
|
1 |
|
| 31 |
8M0095457 |
STRAINER ASSEMBLY
|
1 |
|
| 32 |
8M0097249 |
COVER
|
1 |
|
| 33 |
8M0086279 |
SCREW (M6)
|
4 |
|
| 34 |
8M0087038 |
HOSE
|
1 |
|
| 35 |
815504222 |
CLAMP Worm Gear (1.98 DIameter)
|
7 |
superseded
|
| 4 |
8M2023905 |
HOSE Poppet to Elbow, Stbd. Bottom
|
1 |
superseded
|
| 5 |
8M2023900 |
HOSE Poppet to Elbow, Stbd. Top
|
1 |
|
| 6 |
8M0082181 |
HOSE
|
1 |
|
| 7 |
8M2023906 |
HOSE Poppet to T Drain
|
1 |
|
| 8 |
8M2012295 |
FITTING ASSEMBLY
|
2 |
superseded
|
| 9 |
73379 |
PLUG (.250-18)
|
2 |
superseded
|
