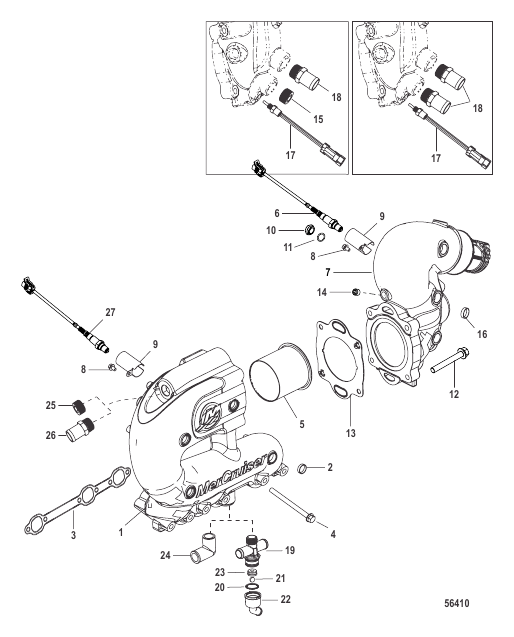

Exhaust Manifold and Elbow
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0104214 |
ВПУСКНОЙ КОЛЛЕКТОР Выхлоп Port MANIFOLD ASSEMBLY Exhaust Port |
1 | |
| 1 | 8M0104216 |
ВПУСКНОЙ КОЛЛЕКТОР Выхлоп Starboard MANIFOLD ASSEMBLY Exhaust Starboard |
1 | |
| 10 | 8M0082363 |
ПРОБКА Included in Elbow Assemblies Non-Catalyzed PLUG Included in Elbow Assemblies Non-Catalyzed |
2 | |
| 11 | 8M0097283 |
ШАЙБА Медь Included in Elbow Assemblies Non-Catalyzed WASHER Copper Included in Elbow Assemblies Non-Catalyzed |
2 | |
| 12 | 668631 |
ВИНТ (0.375-16 x 2.500) SCREW (.375-16 x 2.500) |
4 | |
| 13 | 8M2004606 |
ПРОКЛАДКА (Closed Cooling) GASKET (Closed Cooling) |
2 | |
| 13 | 8M2004414 |
ПРОКЛАДКА Included in Elbow Assemblies (Standard Cooling) GASKET Included in Elbow Assemblies (Standard Cooling) |
2 | |
| 14 | 73379 |
ПРОБКА (.250-18) Included in Elbow Assemblies PLUG (.250-18) Included in Elbow Assemblies |
AR | superseded |
| 15 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) Included in Elbow Assemblies (Standard Cooling) FITTING Pipe - Brass (.750-14) Included in Elbow Assemblies (Standard Cooling) |
2 | superseded |
| 16 | 864689 |
ПРОБКА Расширитель Included in Elbow Assemblies PLUG Expansion Included in Elbow Assemblies |
4 | |
| 17 | 885342002 |
ДАТЧИК В СБОРЕ SENSOR ASSEMBLY |
2 | superseded |
| 18 | 866725 |
ФИТИНГ Прямой (0.750-14) (Standard Cooling) FITTING Straight (.750-14) (Standard Cooling) |
1 | |
| 18 | 866725 |
ФИТИНГ Прямой (0.750-14) (Closed Cooling) FITTING Straight (.750-14) (Closed Cooling) |
2 | |
| 19 | 8M0095953 |
ФИТИНГИ В СБОРЕ (Standard Cooling) FITTING ASSEMBLY (Standard Cooling) |
2 | superseded |
| 2 | 864689 |
ПРОБКА Расширитель PLUG Expansion |
10 | |
| 20 | 864701 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.112 x 0.103) (Standard Cooling) O-RING (1.112 x .103) (Standard Cooling) |
1 | |
| 21 | 863129 |
ШАРИК (Standard Cooling) BALL (Standard Cooling) |
1 | |
| 22 | 862994T |
ФИТИНГ (Standard Cooling) FITTING (Standard Cooling) |
1 | |
| 23 | 8M0059679 |
СЕДЛО ШАРИКА Резина (Standard Cooling) BALL SEAT Rubber (Standard Cooling) |
2 | |
| 24 | 36305T |
КОЛЕНЧАТЫЙ (Closed Cooling) ELBOW (Closed Cooling) |
1 | |
| 25 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) (Standard Cooling) FITTING Pipe - Brass (.750-14) (Standard Cooling) |
1 | superseded |
| 26 | 866725 |
ФИТИНГ Прямой (0.750-14) (Closed Cooling) FITTING Straight (.750-14) (Closed Cooling) |
1 | |
| 27 | 8M0095468 |
ДАТЧИК O2 SENSOR O2 |
2 | superseded |
| 3 | 99757 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 4 | 8M2000229 |
ВИНТ (0.375-16 x 4.75) SCREW (.375-16 x 4.75) |
6 | superseded |
| 5 | 8M0117293 |
КАТАЛИЗАТОР Catalyzed CATALYST Catalyzed |
2 | superseded |
| 6 | 8M2003959 |
ДАТЧИК Кислород Catalyzed [2A684239] & Below SENSOR Oxygen Catalyzed [2A684239] & Below |
2 | |
| 6 | 8M0175736 |
SENSOR Oxygen See 2020-06 TSP Bulletin [2A684240] & Up SENSOR Oxygen See 2020-06 TSP Bulletin [2A684240] & Up |
2 | |
| 7 | 8M0104207 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Без подъема Port ELBOW ASSEMBLY No Rise Port |
1 | superseded |
| 7 | 8M0104208 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Без подъема Starboard ELBOW ASSEMBLY No Rise Starboard |
1 | superseded |
| 7 | 8M0104209 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Подъемный патрубок на 2" (Includes Port & Starboard) ELBOW ASSEMBLY 2 Inch Riser (Includes Port & Starboard) |
1 | superseded |
| 7 | 8M0104210 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Подъемный патрубок на 4" (Includes Port & Starboard) ELBOW ASSEMBLY 4 Inch Riser (Includes Port & Starboard) |
1 | superseded |
| 7 | 8M0104211 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Подъемный патрубок на 6" (Includes Port & Starboard) ELBOW ASSEMBLY 6 Inch Riser (Includes Port & Starboard) |
1 | superseded |
| 8 | 8M2007128 |
ВИНТ Шестигранный фланец (1/4-20) Included in 6 Inch Elbow Assembly 6 Inch Catalyzed SCREW (1/4-20) Hex Flange Included in 6 Inch Elbow Assembly 6 Inch Catalyzed |
4 | |
| 8 | 8M2007128 |
ВИНТ Шестигранный фланец (1/4-20) Included in 6 Inch Elbow Assembly 6 Inch Non-Catalyzed SCREW (1/4-20) Hex Flange Included in 6 Inch Elbow Assembly 6 Inch Non-Catalyzed |
2 | |
| 9 | 8M2004597 |
КРОНШТЕЙН Крышка Included in 6 Inch Elbow Assembly 6 Inch Catalyzed BRACKET Cover Included in 6 Inch Elbow Assembly 6 Inch Catalyzed |
4 | |
| 9 | 8M2004597 |
КРОНШТЕЙН Крышка Included in 6 Inch Elbow Assembly 6 Inch Non-Catalyzed BRACKET Cover Included in 6 Inch Elbow Assembly 6 Inch Non-Catalyzed |
2 |
