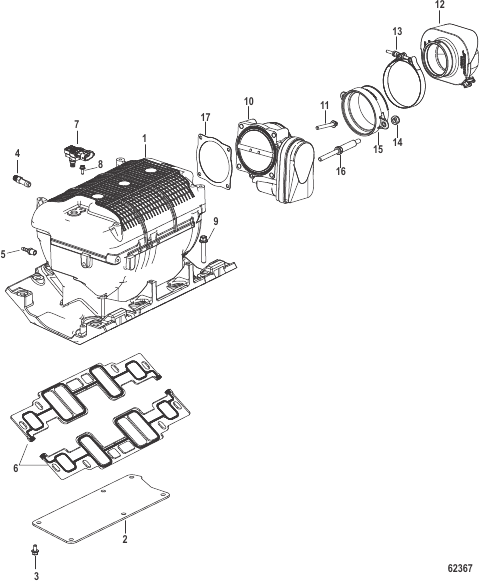

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0116993 |
MANIFOLD ASSEMBLY Intake
|
1 |
|
| 10 |
8M0114805 |
THROTTLE BODY ASSEMBLY 80 MM
|
1 |
superseded
|
| 11 |
8M0103809 |
SCREW (M6 x 40 mm) Stainless Steel
|
4 |
|
| 12 |
8M0109788 |
FLAME ARRESTOR KIT
|
1 |
superseded
|
| 13 |
8M0103048 |
CLAMP
|
1 |
|
| 14 |
8M0045046 |
NUT (M6) Stainless Steel
|
2 |
|
| 15 |
8M0114803 |
ADAPTER
|
1 |
|
| 16 |
8M0109400 |
STUD
|
2 |
|
| 17 |
8M0109442 |
GASKET Throttle Body
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Shield
|
1 |
|
| 3 |
8M0103804 |
SCREW (M6 x 12 MM) Stainless Steel
|
6 |
|
| 4 |
897722 |
FITTING Straight Crankcase Vent Valve (PCV)
|
1 |
|
| 5 |
859092 |
FITTING To Fuel Regulator
|
1 |
|
| 6 |
8M0078533 |
GASKET
|
2 |
superseded
|
| 7 |
8M6002029 |
SENSOR Intake Manifold Temperature/Pressure
|
1 |
|
| 8 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
1 |
|
| 9 |
88552645 |
SCREW (M8X45)
|
8 |
|
| NS |
8M0074364 |
COVER Hose Clamp
|
1 |
|
