| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0114790 |

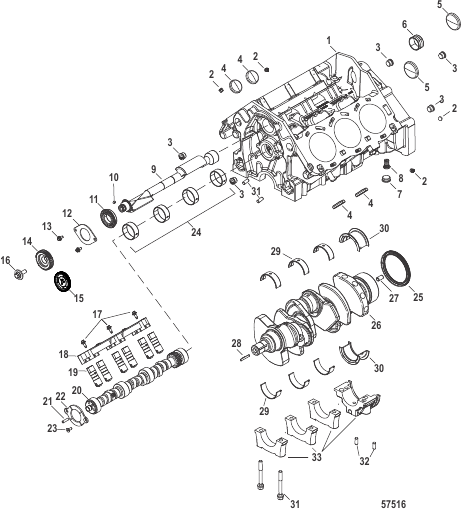

LONGBLOCK ASSEMBLY
|
1 |
|
| 1 |
NSS |
NOT SOLD SEPARATE Cylinder Block
|
1 |
|
| 10 |
8M0076339 |
DOWEL PIN
|
1 |
|
| 11 |
8M6002000 |
BEARING
|
1 |
|
| 12 |
8M0076338 |
RETAINER
|
1 |
|
| 13 |
8M0085530 |
SCREW (M6 x 12)
|
2 |
|
| 14 |
8M0095940 |
GEAR
|
1 |
disc.
|
| 14 |
8M0173289 |
GEAR SET
|
1 |
|
| 15 |
NSS |
NOT SOLD SEPARATE Camshaft Gear Included in 8M0173289
|
1 |
|
| 16 |
8M0080292 |
SCREW (M10 x 1.5)
|
1 |
|
| 17 |
8M0087229 |
SCREW (M6)
|
6 |
|
| 18 |
8M0113651 |
LIFTER GUIDE
|
2 |
|
| 19 |
8M0117000 |
LIFTER
|
12 |
|
| 2 |
8M0087447 |
PLUG (10MM)
|
6 |
|
| 20 |
8M0095922 |
CAMSHAFT ASSEMBLY
|
1 |
superseded
|
| 21 |
8M0068763 |
PIN Dowel
|
1 |
|
| 22 |
8M0079045 |
RETAINER
|
1 |
|
| 23 |
8M0079046 |
SCREW
|
2 |
|
| 24 |
8M0096749 |
BEARING SET Camshaft
|
1 |
superseded
|
| 25 |
8M6002624 |
SEAL
|
1 |
|
| 26 |
8M0095918 |
CRANKSHAFT ASSEMBLY
|
1 |
|
| 27 |
8M0068619 |
PIN Dowel
|
1 |
|
| 28 |
8M0068620 |
KEY
|
1 |
|
| 29 |
8M0095916 |
BEARING SET Main
|
3 |
|
| 3 |
8M0087451 |
PLUG (18MM)
|
5 |
|
| 30 |
8M0095917 |
BEARING SET Thrust
|
1 |
|
| 31 |
8M0114263 |
SCREW (M10 x 1.50 x 86)
|
8 |
|
| 32 |
8M0058586 |
PIN Dowel
|
4 |
|
| 4 |
8M6002412 |
PLUG (1.64)
|
3 |
|
| 5 |
8M6002413 |
PLUG (2.14)
|
4 |
|
| 6 |
8M6002001 |
BEARING
|
1 |
|
| 7 |
8M0087453 |
PLUG (24 MM)
|
2 |
|
| 8 |
8M6003344 |
VALVE ASSEMBLY Oil Bypass Oil Bypass Valve
|
1 |
|
| 9 |
8M0095939 |
BALANCE SHAFT
|
1 |
|
