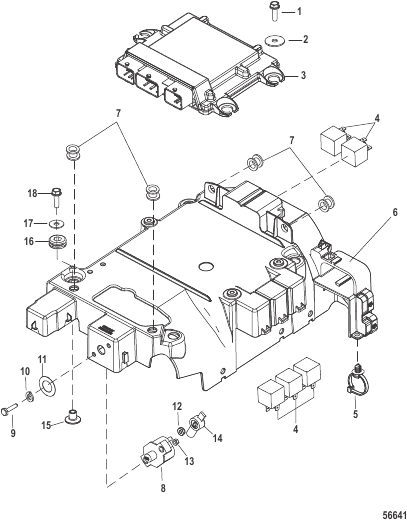

Electrical Components Bracket and Propulsion Control Module
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 897445501 |
ВИНТ (M6 x 20 мм) SCREW (M6 x 20 MM) |
3 | |
| 10 | 72554 |
НАКЛЕЙКА Автоматический выключатель DECAL Circuit Breaker |
1 | |
| 11 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
2 | |
| 12 | 826709106 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
2 | superseded |
| 13 | 89919 |
ЧЕХОЛ Изолятор – черный BOOT Insulator - Black |
2 | |
| 14 | 856954 |
ВТУЛКА BUSHING |
4 | |
| 15 | 834985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | superseded |
| 16 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
4 | |
| 17 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel |
4 | |
| 2 | 35280 |
ШАЙБА (0.255 x 0.620 x 0.030), нержавеющая сталь WASHER (.255 x .620 x .030) Stainless Steel |
3 | |
| 3 | 8M0124456 |
PCM 250 л.с. A EC (DTM) [2A530778] THRU [2A684239] PCM 250 HP A EC (DTM) [2A530778] THRU [2A684239] |
1 | superseded |
| 3 | 8M0175703 |
PCM 250 A EC DTM See 2020-06 TSP Bulletin [2A684240] & Up PCM 250 A EC DTM See 2020-06 TSP Bulletin [2A684240] & Up |
1 | |
| 3 | 8M0124457 |
PCM 250 л.с. A не EC (DTM) PCM 250 HP A Non-EC (DTM) |
1 | superseded |
| 3 | 8M0124458 |
PCM 250 л.с. B не EC (DTS) PCM 250 HP B Non-EC (DTS) |
1 | superseded |
| 3 | 8M0124459 |
PCM 250 л.с. B EC (DTS) [2A530778] THRU [2A684239] PCM 250 HP B EC (DTS) [2A530778] THRU [2A684239] |
1 | superseded |
| 3 | 8M0175707 |
PCM 250 B EC DTS See 2020-06 TSP Bulletin [2A684240] & Up PCM 250 B EC DTS See 2020-06 TSP Bulletin [2A684240] & Up |
1 | |
| 3 | 8M0124460 |
PCM 250 л.с. B EC (DTM) [2A530778] THRU [2A684239] PCM 250 HP B EC (DTM) [2A530778] THRU [2A684239] |
1 | superseded |
| 3 | 8M0175705 |
PCM 250 B EC DTM See 2020-06 TSP Bulletin [2A684240] & Up PCM 250 B EC DTM See 2020-06 TSP Bulletin [2A684240] & Up |
1 | |
| 3 | 8M0124461 |
PCM 250 л.с. B не EC (DTM) PCM 250 HP B Non-EC (DTM) |
1 | superseded |
| 3 | 8M0124462 |
PCM 200 л.с. A EC (DTM) [2A530778] THRU [2A684239] PCM 200 HP A EC (DTM) [2A530778] THRU [2A684239] |
1 | superseded |
| 3 | 8M0175702 |
PCM 200 A EC DTM See 2020-06 TSP Bulletin [2A684240] & Up PCM 200 A EC DTM See 2020-06 TSP Bulletin [2A684240] & Up |
1 | |
| 3 | 8M0124463 |
PCM 200 л.с. A не EC (DTM) PCM 200 HP A Non-EC (DTM) |
1 | superseded |
| 3 | 8M0127879 |
PCM 200 B не ЕС (DTM) PCM 200 B Non-EC (DTM) |
1 | superseded |
| 3 | 8M0127880 |
PCM 200 B ЕС (DTS) [2A530778] THRU [2A684239] PCM 200 B EC (DTS) [2A530778] THRU [2A684239] |
1 | superseded |
| 3 | 8M0175700 |
PCM 200 B EC DTS See 2020-06 TSP Bulletin [2A684240] & Up PCM 200 B EC DTS See 2020-06 TSP Bulletin [2A684240] & Up |
1 | |
| 3 | 8M0127882 |
PCM 200 B не ЕС (DTS) PCM 200 B Non-EC (DTS) |
1 | superseded |
| 3 | 8M0175693 |
PCM 200 B EC DTM [2A530778] THRU [2A684239] PCM 200 B EC DTM [2A530778] THRU [2A684239] |
1 | |
| 3 | 8M0175704 |
PCM 200 B EC DTM See 2020-06 TSP Bulletin [2A684240] & Up PCM 200 B EC DTM See 2020-06 TSP Bulletin [2A684240] & Up |
1 | |
| 4 | 8M0057697 |
КУБИЧЕСКОЕ РЕЛЕ CUBE RELAY |
5 | superseded |
| 5 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
1 | |
| 6 | 8M0095476 |
КРОНШТЕЙН Electrical BRACKET Electrical |
1 | |
| 7 | 8M0096302 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | |
| 8 | 11178A01 |
ВЫКЛЮЧАТЕЛЬ Цепь – 50 ампер BREAKER Circuit - 50 Ampere |
1 | |
| 9 | 45862 |
ВИНТ (№10-32 x 0.875) SCREW (#10-32 x .875) |
2 | |
| NS | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
10 |
