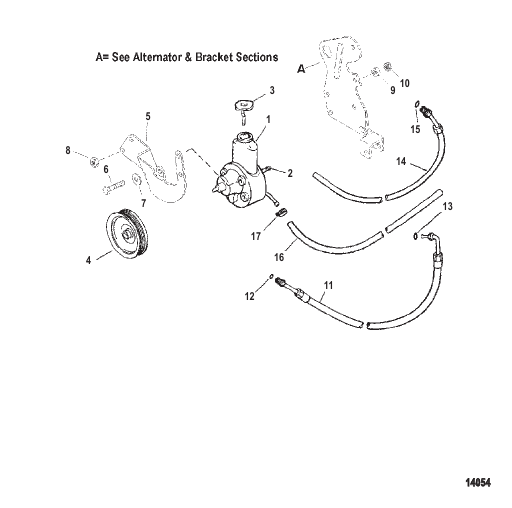

Power Steering Components
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 16792A39 |
НАСОС В СБОРЕ PUMP ASSEMBLY |
1 | |
| 10 | 90517 |
ГАЙКА (M10) NUT (M10) |
1 | |
| 11 | 80622216 |
РУКАВ (Fittings On Both Ends) HOSE (Fittings On Both Ends) |
1 | |
| 12 | 89879 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.064) O-RING (.301 x .064) |
1 | |
| 13 | 806232 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.239 x 0.064) O-RING (.239 x .064) |
1 | |
| 14 | 80622142 |
ШЛАНГ В СБОРЕ (Общая длина 84.00") Return (Fitting On One End) HOSE ASSEMBLY (84.00 Inches Bulk) Return (Fitting On One End) |
1 | |
| 15 | 89879 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.064) O-RING (.301 x .064) |
1 | |
| 16 | 5251914 |
РУКАВ (Общая длина 53.00") Pump to Oil Cooler HOSE (53.00 Inches Bulk) Pump to Oil Cooler |
1 | superseded |
| 17 | 815504105 |
ЗАЖИМ Червячная передача (11-18 мм) CLAMP Worm Gear (11-18 mm) |
3 | superseded |
| 2 | 41877 |
ШПИЛЬКА (M10) STUD (M10) |
2 | discontinued |
| 3 | 95805 |
ПРОБКА CAP |
1 | |
| 4 | 861578 |
ШКИВ (5.75 Inch Metal) PULLEY (5.75 Inch Metal) |
1 | superseded |
| 5 | 862082T |
СКОБА Power Steering BRACE Power Steering |
1 | |
| 6 | 40001188 |
ВИНТ (M10 x 20) SCREW (M10 x 20) |
3 | discontinued |
| 7 | 34714 |
ШАЙБА WASHER |
3 | |
| 8 | 32219 |
ГАЙКА (.375-16) NUT (.375-16) |
3 | |
| 9 | 905201 |
ПРОСТАВКА (0.750 x 0.250) SPACER (.750 x .250) |
1 | |
| NS | 8079921 |
КРЫШКА Hose Clamp End COVER Hose Clamp End |
AR | discontinued |
