| # | Part Number | Description | Qty | Status |
|---|
| - |
811279A11 |

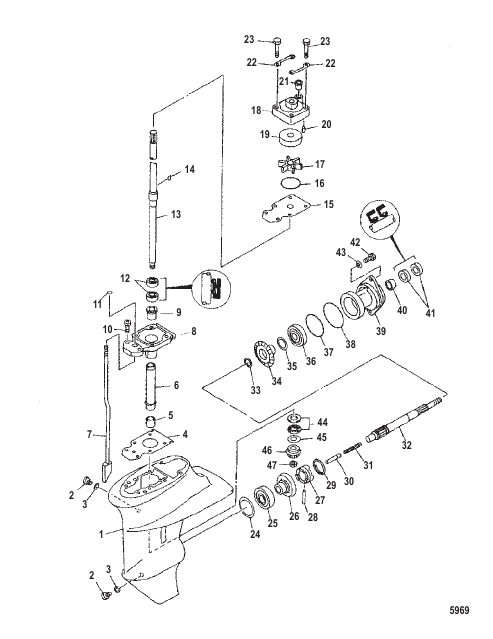

GEAR HOUSING ASSEMBLY
|
1 |
disc.
|
| - |
852851A2 |
REPAIR KIT Water Pump
|
1 |
disc.
|
| - |
852867A1 |
GASKET SET Lower Unit
|
1 |
disc.
|
| 1 |
8119912 |
GEAR HOUSING
|
1 |
disc.
|
| 10 |
8527878 |
SCREW
|
2 |
disc.
|
| 11 |
827049M |
O-RING
|
1 |
disc.
|
| 12 |
82229M |
SEAL Oil
|
2 |
disc.
|
| 13 |
80439911 |
DRIVESHAFT
|
1 |
disc.
|
| 14 |
81603M |
KEY
|
1 |
disc.
|
| 15 |
852854 |
OUTER PLATE
|
1 |
disc.
|
| 16 |
8527963 |
O-RING
|
1 |
disc.
|
| 17 |
8528531 |
IMPELLER
|
1 |
disc.
|
| 18 |
852851A1 |
HOUSING ASSEMBLY Water Pump
|
1 |
disc.
|
| 19 |
852852 |
INSERT
|
1 |
disc.
|
| 2 |
81924M |
PLUG
|
2 |
disc.
|
| 20 |
41275M |
PIN Dowel
|
2 |
|
| 21 |
80532M |
RUBBER
|
1 |
disc.
|
| 22 |
852855 |
PLATE
|
2 |
disc.
|
| 23 |
85277614 |
BOLT
|
4 |
disc.
|
| 24 |
18954M |
SHIM (.10MM)
|
AR |
disc.
|
| 24 |
18955M |
SHIM (.12MM)
|
AR |
disc.
|
| 24 |
18956M |
SHIM (.15MM)
|
AR |
disc.
|
| 24 |
18957M |
SHIM (.18MM)
|
AR |
disc.
|
| 24 |
18958M |
SHIM (.30MM)
|
AR |
disc.
|
| 24 |
18959M |
SHIM (.40MM)
|
AR |
disc.
|
| 24 |
18960M |
SHIM (.50MM)
|
AR |
disc.
|
| 25 |
82321T |
BEARING
|
1 |
disc.
|
| 26 |
99043T |
GEAR Forward
|
1 |
disc.
|
| 27 |
84274M |
CLUTCH
|
1 |
disc.
|
| 28 |
81899M |
PIN Cross
|
1 |
disc.
|
| 29 |
80678M |
RING
|
1 |
disc.
|
| 3 |
81987 |
GASKET
|
2 |
|
| 30 |
80923M |
PLUNGER
|
1 |
disc.
|
| 31 |
84064M |
SPRING
|
1 |
disc.
|
| 32 |
84078M |
PROPELLER SHAFT
|
1 |
disc.
|
| 33 |
94627M |
WASHER
|
1 |
disc.
|
| 34 |
99044T |
GEAR Reverse
|
1 |
disc.
|
| 35 |
80258M |
SHIM (0.1MM)
|
AR |
superseded
|
| 35 |
80259M |
SHIM (0.3MM)
|
AR |
disc.
|
| 35 |
80260M |
SHIM (0.5MM)
|
AR |
disc.
|
| 36 |
8528001 |
BEARING
|
1 |
disc.
|
| 37 |
84089M |
O-RING
|
1 |
disc.
|
| 38 |
827156M |
O-RING
|
1 |
disc.
|
| 39 |
804398 |
CARRIER Bearing
|
1 |
disc.
|
| 4 |
8527836 |
GASKET
|
1 |
disc.
|
| 40 |
84086M |
BEARING Needle
|
1 |
disc.
|
| 41 |
8540171 |
SEAL Oil
|
2 |
|
| 42 |
84058M |
BOLT (M6 x 20)
|
2 |
|
| 43 |
82214M |
WASHER
|
2 |
disc.
|
| 44 |
99030001 |
BEARING
|
1 |
disc.
|
| 45 |
827126013 |
SHIM (1.13)
|
AR |
disc.
|
| 45 |
827127020 |
SHIM (1.20)
|
AR |
disc.
|
| 46 |
804499 |
GEAR Pinion
|
1 |
disc.
|
| 47 |
99042M |
NUT
|
1 |
disc.
|
| 5 |
17673M |
BEARING
|
1 |
disc.
|
| 6 |
852850 |
SLEEVE
|
1 |
disc.
|
| 7 |
8528571 |
SHIFT CAM
|
1 |
disc.
|
| 8 |
852856 |
HOUSING
|
1 |
disc.
|
| 9 |
82590M |
BUSHING (UPPER)
|
1 |
disc.
|
