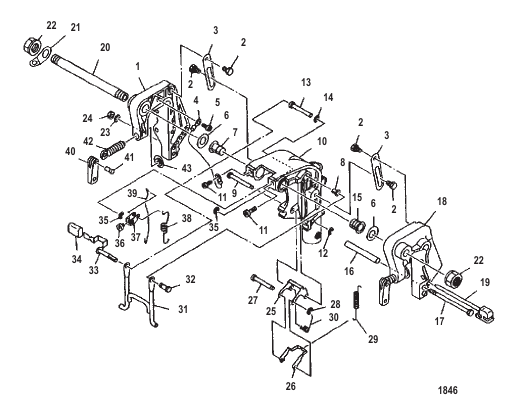

CLAMP AND SWIVEL BRACKET
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 827437006 |
КРОНШТЕЙН ФИКСАТОРА (STARBOARD) CLAMP BRACKET (STARBOARD) |
1 | discontinued |
| 10 | 852818003 |
ПОВОРОТНЫЙ КРОНШТЕЙН SWIVEL BRACKET |
1 | discontinued |
| 11 | 804384 |
ВИНТ SCREW |
2 | discontinued |
| 12 | 82330M |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
| 13 | 804388 |
ВТУЛКА COLLAR |
1 | discontinued |
| 14 | 804387 |
ШАЙБА WASHER |
1 | discontinued |
| 15 | 852814 |
ВТУЛКА BUSHING |
1 | discontinued |
| 16 | 94568M |
ВТУЛКА COLLAR |
1 | discontinued |
| 17 | 84062M |
БОЛТ BOLT |
1 | discontinued |
| 18 | 827120005 |
КРОНШТЕЙН ФИКСАТОРА (PORT) CLAMP BRACKET (PORT) |
1 | discontinued |
| 19 | 852817 |
ШТОК НАКЛОНА TILT ROD |
1 | discontinued |
| 2 | 8527766 |
БОЛТ BOLT |
4 | discontinued |
| 20 | 852813001 |
ШПИЛЬКА STUD |
1 | discontinued |
| 21 | 19111M |
ПЛАСТИНА PLATE |
1 | discontinued |
| 22 | 852816 |
ГАЙКА NUT |
2 | superseded |
| 23 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 24 | 82390M |
ГАЙКА (M6) NUT (M6) |
1 | discontinued |
| 25 | 804391 |
ПЛАСТИНА ЗАПИРАНИЯ НАКЛОНА TILT LOCK PLATE |
1 | discontinued |
| 26 | 804389010 |
ПЛАСТИНА ЗАПИРАНИЯ НАКЛОНА TILT LOCK PLATE |
1 | discontinued |
| 27 | 804392 |
ВАЛ Штифт запирания наклона SHAFT Tilt Lock |
1 | discontinued |
| 28 | 82327M |
СТОПОРНОЕ ПРУЖИННОЕ КОЛЬЦО CIRCLIP |
1 | discontinued |
| 29 | 804394002 |
ПРУЖИНА SPRING |
1 | discontinued |
| 3 | 852823 |
РЫЧАГ Ограничитель наклона LEVER Tilt Stop |
2 | discontinued |
| 30 | 804390 |
ПРУЖИНА SPRING |
1 | discontinued |
| 31 | 8528201 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 32 | 8112711 |
ВАЛ SHAFT |
1 | discontinued |
| 33 | 804386001 |
РЫЧАГ Наклон LEVER Tilt |
1 | discontinued |
| 34 | 11932M |
КРЫШКА COVER |
1 | discontinued |
| 35 | 82330M |
КОЛЬЦО Защелка RING Snap |
2 | discontinued |
| 36 | 811995001 |
ВИНТ SCREW |
1 | discontinued |
| 37 | 852819002 |
НАКЛОН Наклон TILT Tilt |
1 | discontinued |
| 38 | 8527785 |
ПРУЖИНА SPRING |
1 | discontinued |
| 39 | 804393 |
ШТОК ЗАПИРАНИЯ НАКЛОНА TILT LOCK ROD |
1 | discontinued |
| 4 | 804383 |
КАБЕЛЬ CABLE |
1 | discontinued |
| 40 | 91784M |
РУКОЯТКА HANDLE |
2 | |
| 41 | 852812 |
ШТИФТ PIN |
2 | discontinued |
| 42 | 81756M |
ВИНТ SCREW |
2 | discontinued |
| 43 | 80638M |
НАКЛАДКА PAD |
2 | discontinued |
| 5 | 19172M |
ВИНТ SCREW |
1 | discontinued |
| 6 | 8528034 |
ШАЙБА WASHER |
2 | discontinued |
| 7 | 852814 |
ВТУЛКА BUSHING |
1 | discontinued |
| 8 | 8528142 |
ВТУЛКА BUSHING |
1 | discontinued |
| 9 | 8112713 |
ВАЛ Фиксатор реверса SHAFT Reverse Lock |
1 | discontinued |
