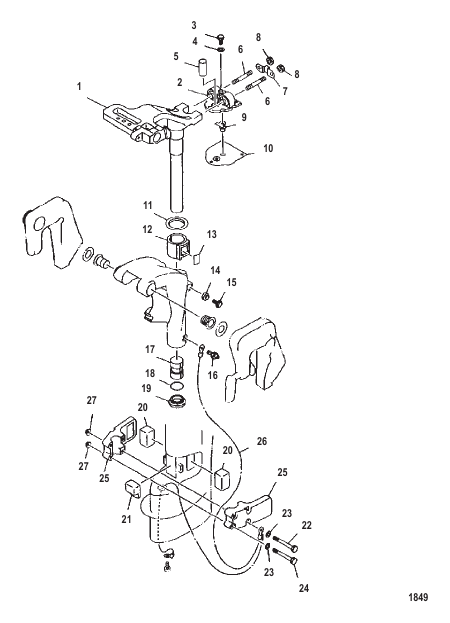

STEERING ARM
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 852826004 |
КРОНШТЕЙН Рулевой механизм BRACKET Steering |
1 | discontinued |
| 10 | 8527832 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 11 | 81873001 |
ШАЙБА WASHER |
1 | discontinued |
| 12 | 852814013 |
ВТУЛКА BUSHING |
1 | discontinued |
| 13 | 852824 |
ФРИКЦИОННЫЙ ДИСК FRICTION PLATE |
1 | discontinued |
| 14 | 91637M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 15 | 84830M |
БОЛТ BOLT |
1 | discontinued |
| 16 | 82369M |
ФИТИНГ FITTING |
1 | |
| 17 | 81955M |
ВТУЛКА BUSHING |
1 | discontinued |
| 18 | 8527961 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 19 | 8528144 |
ВТУЛКА BUSHING |
1 | discontinued |
| 2 | 852827001 |
ДЕМПФЕР ОПОРЫ (UPPER SIDE) MOUNT DAMPER (UPPER SIDE) |
1 | discontinued |
| 20 | 84037M |
РЕЗИНОВАЯ ОПОРА (LOWER SIDE) RUBBER MOUNT (LOWER SIDE) |
2 | discontinued |
| 21 | 8528291 |
ДЕМПФЕР ОПОРЫ (LOWER FRONT) MOUNT DAMPER (LOWER FRONT) |
1 | discontinued |
| 22 | 85277610 |
БОЛТ BOLT |
2 | discontinued |
| 23 | 82214M |
ШАЙБА WASHER |
4 | discontinued |
| 24 | 8527769 |
БОЛТ BOLT |
2 | discontinued |
| 25 | 8528301 |
КОРПУС Нижняя опора HOUSING Lower Mount |
2 | discontinued |
| 26 | 8527741 |
КАБЕЛЬ CABLE |
1 | discontinued |
| 27 | 8528162 |
ГАЙКА NUT |
4 | discontinued |
| 3 | 852776 |
БОЛТ BOLT |
3 | discontinued |
| 4 | 82214M |
ШАЙБА WASHER |
3 | discontinued |
| 5 | 852814014 |
ВТУЛКА COLLAR |
1 | discontinued |
| 6 | 8527767 |
БОЛТ BOLT |
2 | discontinued |
| 7 | 852828 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 8 | 82382M |
ГАЙКА NUT |
2 | discontinued |
| 9 | 852829002 |
ДЕМПФЕР DAMPER |
1 | discontinued |
