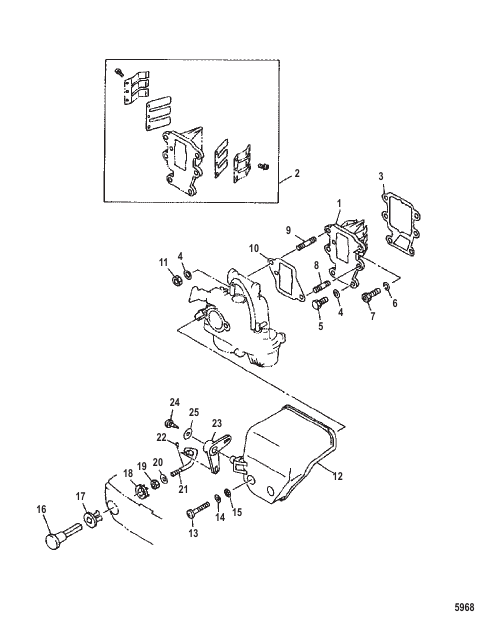

INTAKE MANIFOLD AND CHOKE
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|
| - |
811252T1 |
REPAIR KIT Carburetor
|
1 |
disc.
|
| - |
852783A1 |
GASKET SET Powerhead
|
1 |
disc.
|
| 1 |
84246A1 |
REED VALVE ASSEMBLY
|
1 |
disc.
|
| 10 |
83245M |
GASKET
|
1 |
disc.
|
| 11 |
82390M |
NUT (M6)
|
2 |
disc.
|
| 12 |
852804 |
COVER
|
1 |
disc.
|
| 13 |
82522M |
SCREW
|
2 |
disc.
|
| 14 |
82211M |
WASHER
|
2 |
disc.
|
| 15 |
8528031 |
WASHER
|
2 |
disc.
|
| 16 |
852805 |
KNOB Choke
|
1 |
disc.
|
| 17 |
84760M |
GROMMET
|
1 |
disc.
|
| 18 |
826920M |
GROMMET
|
1 |
disc.
|
| 19 |
80245M |
NUT
|
1 |
disc.
|
| 2 |
84246M |
REED SET
|
1 |
disc.
|
| 20 |
8528033 |
WASHER
|
1 |
disc.
|
| 21 |
8112401 |
ROD Choke
|
1 |
disc.
|
| 22 |
82050M |
COTTER PIN
|
1 |
disc.
|
| 23 |
811241M |
LEVER Choke
|
1 |
disc.
|
| 24 |
8527871 |
SCREW
|
|
disc.
|
| 25 |
8528032 |
WASHER
|
1 |
disc.
|
| 3 |
83941M |
GASKET
|
1 |
disc.
|
| 4 |
82214M |
WASHER
|
5 |
disc.
|
| 5 |
826957M |
BOLT
|
3 |
disc.
|
| 6 |
82212M |
LOCKWASHER
|
1 |
disc.
|
| 7 |
94766M |
BOLT
|
1 |
disc.
|
| 8 |
80232M |
STUD
|
1 |
disc.
|
| 9 |
81731M |
STUD
|
1 |
disc.
|
