| # | Part Number | Description | Qty | Status |
|---|
| - |
811252T1 |
REPAIR KIT Carburetor
|
1 |
disc.
|
| - |
852783A1 |
GASKET SET Powerhead
|
1 |
disc.
|
| 1 |
852806A02 |

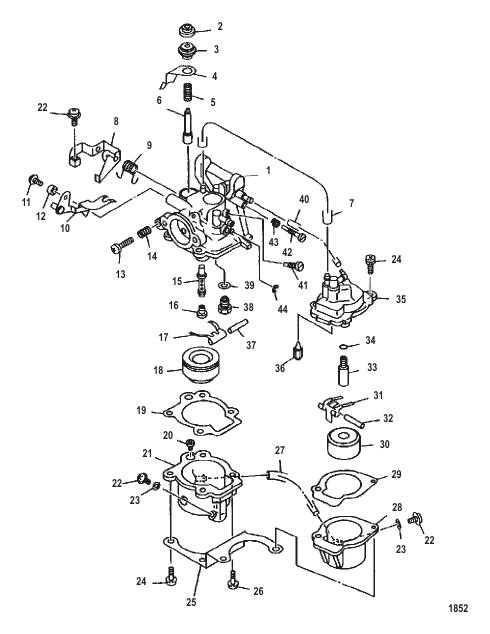

CARBURETOR ASSEMBLY
|
1 |
disc.
|
| 10 |
811245M |
LEVER
|
1 |
disc.
|
| 11 |
83112M |
SCREW
|
1 |
disc.
|
| 12 |
83115M |
COLLAR
|
1 |
disc.
|
| 13 |
827147M |
SCREW
|
1 |
disc.
|
| 14 |
80193M |
SPRING
|
1 |
disc.
|
| 15 |
811243002 |
MAIN NOZZLE
|
1 |
disc.
|
| 16 |
8112441 |
JET Main (#102) (#102)
|
1 |
disc.
|
| 17 |
80203M |
ARM
|
1 |
disc.
|
| 18 |
80450M |
FLOAT
|
1 |
disc.
|
| 19 |
80740M |
GASKET
|
1 |
disc.
|
| 2 |
80196M |
COVER
|
1 |
disc.
|
| 20 |
811246M |
JET Starting (#50) (#50)
|
1 |
disc.
|
| 21 |
94735001 |
BODY
|
1 |
disc.
|
| 22 |
8527873 |
SCREW
|
3 |
superseded
|
| 23 |
80737M |
GASKET
|
2 |
superseded
|
| 24 |
8527872 |
SCREW
|
4 |
disc.
|
| 25 |
852809 |
PLATE
|
1 |
disc.
|
| 26 |
81758M |
SCREW (M4 x 12)
|
2 |
|
| 27 |
94746M |
HOSE
|
1 |
disc.
|
| 28 |
94744M |
BODY
|
1 |
disc.
|
| 29 |
94691M |
GASKET
|
1 |
disc.
|
| 3 |
852811 |
ROD Starter
|
1 |
superseded
|
| 30 |
94696M |
FLOAT
|
1 |
disc.
|
| 31 |
94697M |
ARM
|
1 |
disc.
|
| 32 |
811249M |
PIN Float
|
1 |
disc.
|
| 33 |
8112511 |
JET Pilot (#68) (#68)
|
1 |
disc.
|
| 34 |
94695M |
O-RING
|
1 |
disc.
|
| 35 |
852808 |
COVER
|
1 |
superseded
|
| 36 |
95430M |
VALVE SEAT
|
1 |
disc.
|
| 37 |
80451M |
PIN
|
1 |
disc.
|
| 38 |
11930M |
SEAT Valve
|
1 |
disc.
|
| 39 |
80205M |
GASKET
|
1 |
disc.
|
| 4 |
80199M |
PLATE
|
1 |
disc.
|
| 40 |
97591M |
HOSE
|
1 |
disc.
|
| 41 |
91746M |
JET Pilot (#46) (#46)
|
1 |
disc.
|
| 42 |
80573M |
SCREW
|
1 |
disc.
|
| 43 |
8095791 |
SPRING
|
1 |
disc.
|
| 44 |
94722M |
RING Retaining
|
1 |
disc.
|
| 5 |
80194M |
SPRING
|
1 |
disc.
|
| 6 |
80195M |
PLUNGER
|
1 |
disc.
|
| 7 |
8527921 |
HOSE
|
1 |
disc.
|
| 8 |
852807 |
LEVER Throttle
|
1 |
disc.
|
| 9 |
80574M |
SPRING
|
1 |
disc.
|
